CENTRIC part description

Product Description

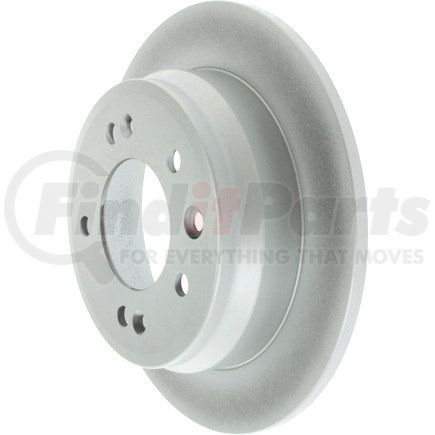

Centric GCX Rotor with Partial Coating

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs

Product Attributes

Misc Holes [cntrc] 3
Max Pb Drum Dia [cntrc] In 6.654
Product Grade [cntrc] Premium
Disc Mounting [cntrc] Floating / DIH
Weight [cntrc] Kgs 4.070
Weight [cntrc] Lbs 8.950
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Max Pb Drum Dia [cntrc] Mm 169.000
Discard Thickness 0.331 IN
Discard Thickness 8.400 MM
Nominal Thickness 10.000 MM
Nominal Thickness 0.394 IN
Disc Finish Partially Coated
Hat Finish Coated
Overall Height 61.200 MM
Overall Height 2.409 IN
Outside Diameter 10.315 IN
Outside Diameter 262.000 MM
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Solid
Nominal Drum Diameter 6.614 IN
Nominal Drum Diameter 168.000 MM
Bearings Included No
Center Hole Diameter 76.000 MM
Center Hole Diameter 2.992 IN
Mounting Bolt Hole Circle Diameter 114.300 MM
Mounting Bolt Hole Circle Diameter 4.500 IN
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 12.500 MM
Stud/Lug Hole Diameter 0.492 IN

Additional Information

Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 889590301571
