CENTRIC 320.33137 Part Description
Manufacturer
Product Description

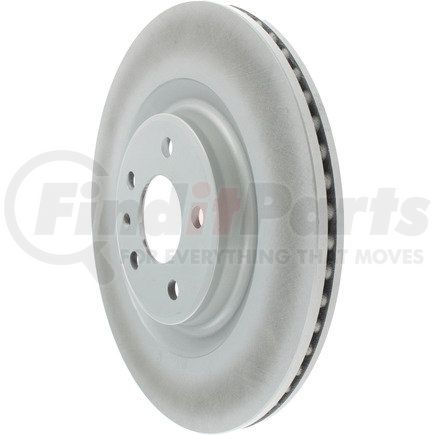

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.33137 Specifications
Product Attributes
| Weight [cntrc] Kgs | 7.840 |
| Hat Id [cntrc] Mm | 146.900 |
| Hat Id [cntrc] In | 5.783 |
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Lbs | 17.250 |
| Vane Style [cntrc] | Pillar |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20.000 MM |
| Nominal Thickness | 0.858 IN |
| Nominal Thickness | 21.800 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 36.200 MM |
| Overall Height | 1.425 IN |
| Outside Diameter | 330.000 MM |
| Outside Diameter | 12.992 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68.000 MM |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.300 MM |
| Stud/Lug Hole Diameter | 0.602 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590300642 |
