CENTRIC 320.67046 Part Description
Manufacturer
Product Description

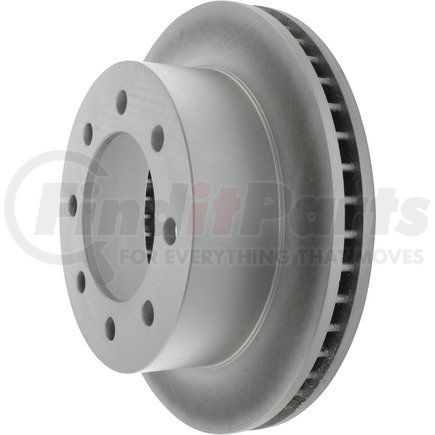

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.67046 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 26.740 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 12.150 |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 0 |
| Discard Thickness | 33.530 MM |
| Discard Thickness | 1.320 IN |
| Nominal Thickness | 35.500 MM |
| Nominal Thickness | 1.398 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 102.000 MM |
| Overall Height | 4.016 IN |
| Outside Diameter | 326.500 MM |
| Outside Diameter | 12.854 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 4.815 IN |
| Center Hole Diameter | 122.300 MM |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 16.900 MM |
| Stud/Lug Hole Diameter | 0.665 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590302325 |
CENTRIC 320.67046 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 76920, 76920FZN, 76920R |
CENTRIC 320.67046 Cross References
We have 3 alternatives for the 320.67046 by CENTRIC:
