CENTRIC 320.65127 Part Description
Manufacturer
Product Description

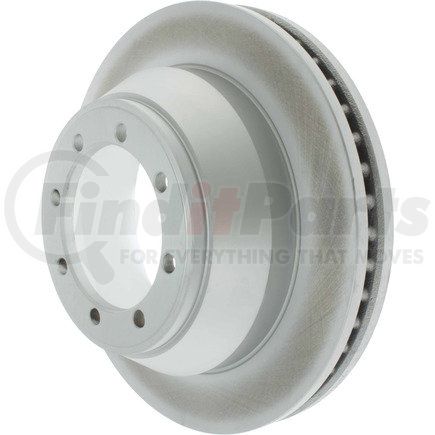

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.65127 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 38.500 |
| Max Pb Drum Dia [cntrc] Mm | 228.200 |
| Max Pb Drum Dia [cntrc] In | 8.984 |
| Misc Holes [cntrc] | 0 |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Kgs | 17.500 |
| Discard Thickness | 1.591 IN |
| Discard Thickness | 40.400 MM |
| Nominal Thickness | 42.000 MM |
| Nominal Thickness | 1.654 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 116.700 MM |
| Overall Height | 4.594 IN |
| Outside Diameter | 345.000 MM |
| Outside Diameter | 13.583 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 8.898 IN |
| Nominal Drum Diameter | 226.000 MM |
| Bearings Included | No |
| Center Hole Diameter | 4.854 IN |
| Center Hole Diameter | 123.300 MM |
| Mounting Bolt Hole Circle Diameter | 145.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.709 IN |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 13.000 MM |
| Stud/Lug Hole Diameter | 0.512 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590297355 |
CENTRIC 320.65127 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 680689, 680689R |
