CENTRIC 320.66005 Part Description
Manufacturer
Product Description

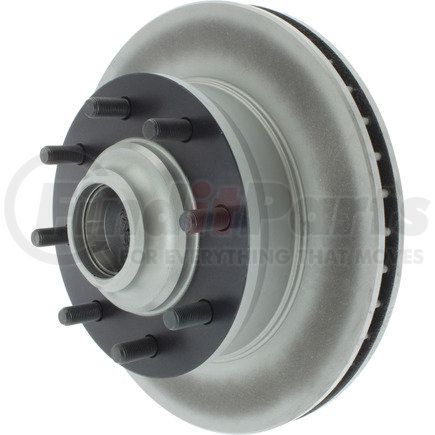

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.66005 Specifications
Product Attributes
| Disc Mounting [cntrc] | Hub & Rotor |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Inner Seal # [cntrc] | 417.66000 |
| Inner Bearing # [cntrc] | 410.91035 |
| Outer Bearing # [cntrc] | 415.66000 |
| Outer Race # [cntrc] | 416.66000 |
| Weight [cntrc] Kgs | 17.550 |
| Weight [cntrc] Lbs | 38.600 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 30.860 MM |
| Discard Thickness | 1.215 IN |
| Nominal Thickness | 32.800 MM |
| Nominal Thickness | 1.291 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.563 IN |
| Overall Height | 121.000 MM |
| Overall Height | 4.764 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 317.500 MM |
| Rotor Outside Diameter | 12.500 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 18.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 116.600 MM |
| Center Hole Diameter | 4.591 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590297379 |
CENTRIC 320.66005 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 5010R |
