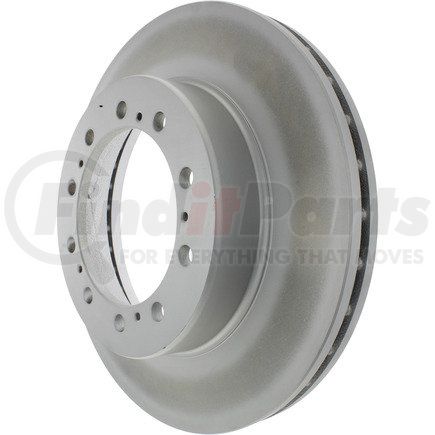

Centric 320.80001 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Misc Holes [cntrc] | 5 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Behind the Hub |
| Notes [cntrc] | Hat Shaped, Tapped for ABS Ring |
| Weight [cntrc] Lbs | 45.000 |
| Weight [cntrc] Kgs | 20.450 |
| Vane Style [cntrc] | Straight |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.320 IN |
| Discard Thickness | 33.530 MM |
| Nominal Thickness | 36.500 MM |
| Nominal Thickness | 1.437 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 86.400 MM |
| Overall Height | 3.402 IN |
| Outside Diameter | 390.400 MM |
| Outside Diameter | 15.370 IN |
| Mounting Bolt Hole Quantity | 10 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 6.000 IN |
| Center Hole Diameter | 152.400 MM |
| Mounting Bolt Hole Circle Diameter | 184.200 MM |
| Mounting Bolt Hole Circle Diameter | 7.252 IN |
| Mounting Bolt Hole Diameter | 15.340 MM |
| Mounting Bolt Hole Diameter | 0.604 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590297300 |
Part Interchanges
CENTRIC 320.80001 Cross Reference
We have 2 alternatives for the 320.80001 by CENTRIC:
