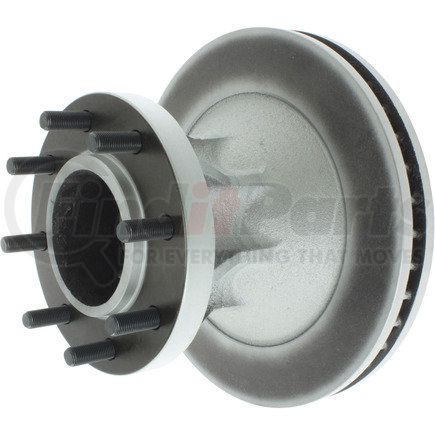

Centric 320.66001 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Disc Mounting [cntrc] | Hub & Rotor |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Inner Seal # [cntrc] | 417.66000 |
| Inner Bearing # [cntrc] | 410.91035 |
| Outer Bearing # [cntrc] | 415.66000 |
| Outer Race # [cntrc] | 416.66000 |
| Weight [cntrc] Kgs | 27.050 |
| Weight [cntrc] Lbs | 59.500 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 37.210 MM |
| Discard Thickness | 1.465 IN |
| Nominal Thickness | 38.990 MM |
| Nominal Thickness | 1.535 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.563 IN |
| Overall Height | 195.000 MM |
| Overall Height | 7.677 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| 54 | 317.700 MM |
| Rotor Outside Diameter | 12.508 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 18.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 115.600 MM |
| Center Hole Diameter | 4.551 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590297416 |
Part Interchanges
CENTRIC 320.66001 Cross Reference
We have 2 alternatives for the 320.66001 by CENTRIC:
