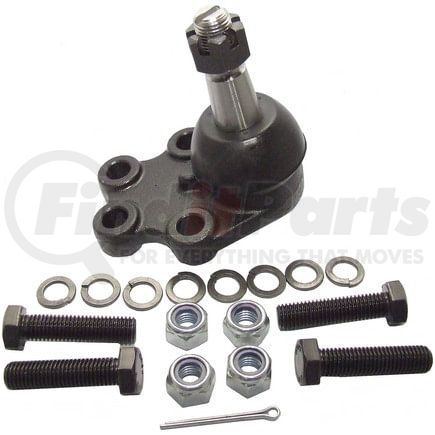

(888) 312-8812 Login SignupDELPHI TC1624 Ball Joint
Tap to view 2 more
$6299
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC1624 Part Description
DELPHI TC1624 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.260 IN |
| Maximum Outside Diameter | 32.00 MM |
| Color | Gray |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 102 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.969 IN |
| Mounting Bolt Length | 50.00 MM |
| Washers Included | Yes |
| Height | 4.685 IN |
| Height | 121.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Stud Thread Length | 1.122 IN |
| Wrench Size | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolt Head Diameter | 0.827 IN |
| Mounting Bolt Head Diameter | 21.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.75 MM |
| Mounting Bolt Thread Length | 32.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.728 IN |
| Stud Tapered End 2 Diameter | 18.5 MM |
| Stud Tapered End 1 Diameter | 0.925 IN |
| Stud Tapered End 1 Diameter | 23.5 MM |
| Stud Thread Pitch | 1.5 MM |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Length | 28.5 MM |
| Mounting Bolt Shank Diameter | 0.470 IN |
| Mounting Bolt Thread Length | 1.260 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604277164 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1624 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | K6539 |
| Mevotech | MK6539 |
| General Motors | 15015515, 15750786 |
| MAS Industries | B6539 |
| TRW | JBJ844 |
| N/A | GK6539, TXK6539 |
DELPHI TC1624 Fits Vehicles
- GMC Sierra 1500 Classic (2007)
- Chevrolet Silverado 1500 Classic (2007)
- GMC Sierra 1500 (1999-2006)
- Chevrolet Silverado 1500 (1999-2006)
