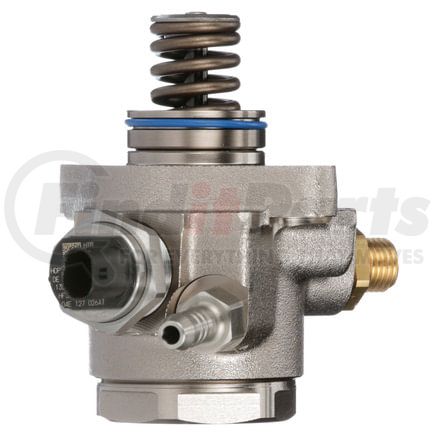

Delphi HM10038 - Direct Injection High Pressure Fuel Pump
$34599
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Direct Injection High Pressure Fuel Pump
Features & Benefits
- Capable of delivering fuel at high pressures that can range from 2,000-2,800 PSI
- Mechanically driven high fuel flow pump enables rail pressure build up quickly for fast start times
- Fuel delivered directly into the engine combustion chamber for increased horsepower and fuel economy
- Meets OE specifications
Product Attributes
| Outlet Outside Diameter | 0.313 IN |
| Fuel Type | Gas |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Gasket Or Seal Included | No |
| Housing Material | Metal |
| Terminal Quantity | 2 |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Housing Color | Silver |
| Inlet Type | Threaded |
| Outlet Type | Hose Bead |
| Outlet Quantity | 2 |
| In Tank or External | External |
| Drive Shaft Included | No |
| Inlet Fitting Thread Size | M14-1.5 MM |
| Pump Type | Mechanical |
| Item Grade | Standard Replacement |
| Package Contents | Direct Injection High Pressure Fuel Pump, Instruction Sheet |
Additional Information
| Country of Origin (Primary) | DE |
| Harmonized Tariff Code (Schedule B) | 8413301000 |
| Harmonized Tariff Code (HTS) | 9026102080 |
| Remanufactured Part | N |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604285022 |
| VMRS Code | 044003218 |
| UNSPSC | 40151532 |
Part Interchanges
- Hitachi Automotive 2503082
- Hitachi Automotive HFS03441C
- Hitachi Automotive HFS03441D
- Hitachi Automotive HFS03441E
- Hitachi Automotive HFS03441F
- Hitachi Automotive HFS03441H
- Hitachi Automotive HFS03441K
- Hitachi Automotive HFS03441L
- Hitachi Automotive HFS03441M
- Hitachi Automotive HFS03441Q
- Hitachi Automotive HFS034A41A
- AutoZone CHM10038
- Audi 04E 127 026 AA
- Audi 04E 127 026 AG
- Audi 04E 127 026 AH
- Audi 04E 127 026 AT
- Audi 04E 127 026 BC
- Audi 04E 127 026 BD
- Audi 04E 127 026 BE
- Audi 04E 127 026 C
- Audi 04E 127 026 G
- Audi 04E 127 026 H
- Audi 04E 127 026K
- Volkswagen 04E 127 026 AA
- Volkswagen 04E 127 026 AG
- Volkswagen 04E 127 026 AH
- Volkswagen 04E 127 026 AT
- Volkswagen 04E 127 026 BC
- Volkswagen 04E 127 026 BD
- Volkswagen 04E 127 026 BE
- Volkswagen 04E 127 026 C
- Volkswagen 04E 127 026 G
- Volkswagen 04E 127 026 H
- Volkswagen 04E 127 026K
- Skoda 04E 127 026 AA
- Skoda 04E 127 026 AG
- Skoda 04E 127 026 AH
- Skoda 04E 127 026 AT
- Skoda 04E 127 026 BC
- Skoda 04E 127 026 BD
- Skoda 04E 127 026 BE
- Skoda 04E 127 026 C
- Skoda 04E 127 026 G
- Skoda 04E 127 026 H
- Skoda 04E 127 026K
- Seat 04E 127 026 AA
- Seat 04E 127 026 AG
- Seat 04E 127 026 AH
- Seat 04E 127 026 AT
- Seat 04E 127 026 BC
- Seat 04E 127 026 BD
- Seat 04E 127 026 BE
- Seat 04E 127 026 C
- Seat 04E 127 026 G
- Seat 04E 127 026 H
- Seat 04E 127 026K
