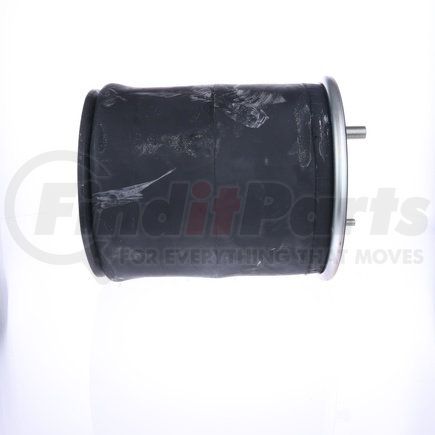

MERITOR MAF9122 Part Description
| Application | Hendrickson Trailer S3467, S3830; Holland (Neway) 90557020, 90557071, 90557076, 90557077, 90557185 (parallel align.); Hendrickson Can. B-12514-008, B-12514-010; Porcupine; Reyco 12883-02; Sauer P50-732; Ridewell 1003589122C; Temisko; Watson & Chalin AS-00 |
| Bead Plate Diameter Bottom | 10.30 in. |
| Bead Plate Diameter Top | 11.31 in. |
| Collapsed Height | 8.70 in. |
| Convoluted Style | 1T Reversible Sleeve |
| Max. Height | 27.30 in. |
| Part Diameter | 10.62 in. |
| Piston Height | 7.00 in. |
| Stud Configuration-Bottom | 4 |
| Stud Configuration-Top | 2 |
| Stud Mount-Bottom Flat | Flat |
| Stud Mount-Top Flat | Stud |
| VMRS Code | 016-008-001 |
Meritor Air Suspension Spring
Meritor air suspension spring protects tractors and trailers from road shocks and keep your ride a comfortable one. This aftermarket air spring covers a wide range of OEM specifications at affordable prices.
Features & Benefits
- Lightweight, high-strength pistons with support washers provide exceptional strength and durability
- Made of premium-grade steel and aluminum with electrostatic coating for oxidation resistance
- Special chromium coating on bead plate protects against rust, corrosive chemicals, and harsh operating environments
MERITOR MAF9122 Specifications
Product Attributes
| Application | Hendrickson Trailer S3467, S3830; Holland (Neway) 90557020, 90557071, 90557076, 90557077, 90557185 (parallel align.); Hendrickson Can. B-12514-008, B-12514-010; Porcupine; Reyco 12883-02; Sauer P50-732; Ridewell 1003589122C; Temisko; Watson & Chalin AS-00 |
| Bead Plate Diameter Bottom | 10.30 in. |
| Bead Plate Diameter Top | 11.31 in. |
| Brand | Meritor |
| Collapsed Height | 8.70 in. |
| Convoluted Style | 1T Reversible Sleeve |
| Max. Height | 27.30 in. |
| Pallet Quantity | 22 |
| Part Diameter | 10.62 in. |
| Piston Height | 7.00 in. |
| Stud Configuration-bottom | 04 |
| Stud Configuration-top | 02 |
| Stud Mount-bottom Flat | Flat |
| Stud Mount-top Flat | Stud |
| Weight | 19.60 |
MERITOR MAF9122 Cross References
| Brand | Part Number |
|---|---|
| 90557077 | |
| AUTOMANN | AB1D28C9122, AB1D28C-9122 |
| CONTITECH | 1110521A313, 11 10.5-21 A 313 |
| DAYTON PARTS | 452-9122L |
| FIRESTONE | W013589122 |
| FLAGG | 8313, 1R13038, 1R13048, AS4312, AS8313 |
| GOODYEAR | 1R13038 |
| GOODYEAR/STEMCO | 1R13038 |
| SAF-HOLLAND | 90557077 |
| TRIANGLE | 8313 |
MERITOR MAF9122 Customer Reviews
No reviews yet
Be the first to review this product!
MERITOR MAF9122 Manufacturer Information
Meritor®, whose roots could be traced back to 1909, is backed by over 100 years of industry experience plus a massive portfolio of products for various industries. In 1998, it made several acquisitions, including Volvo Trucks' heavy vehicle manufacturing operation in Sweden, Euclid Industries, and Lucas Varity's Heavy Vehicle Braking Systems division. Such investments solidify Meritor's position as the leading global supplier of brakes, axles, drivelines, transmissions, suspensions, tire inflations systems, and a whole lot of parts, hardware, and accessories for the automotive, truck, trailer, rail cars, bus and coach, and many other applications. Its "Run with the Bull" global brand identity further strengthens its commitment to provide the industry with durable products, unparalleled service and support, and continuous innovation.
