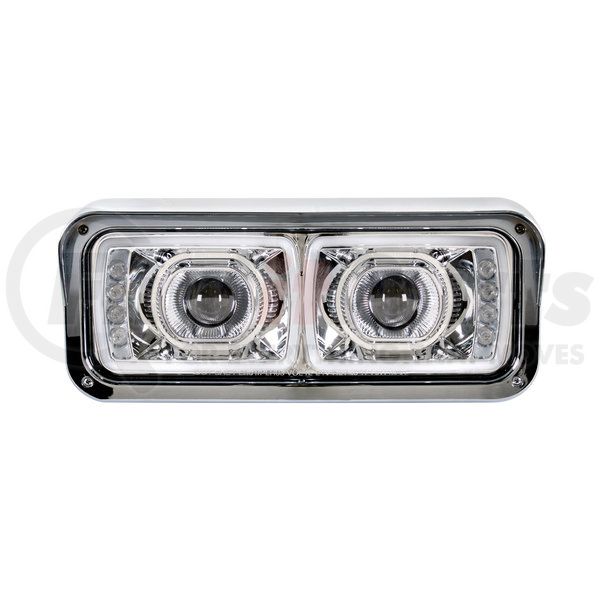

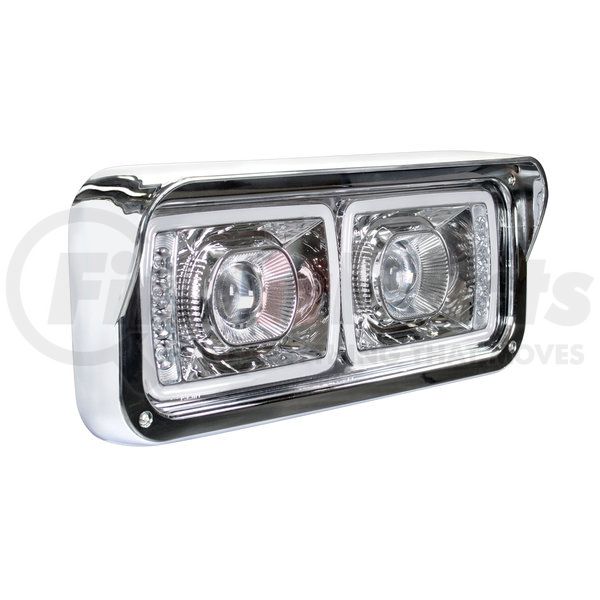

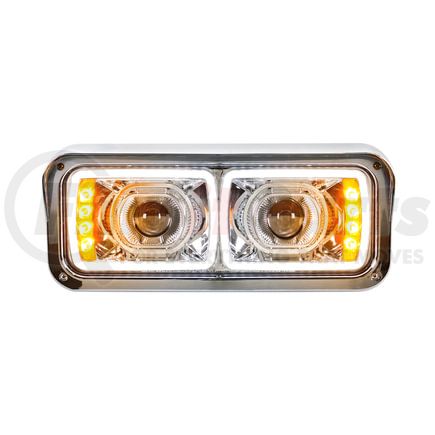

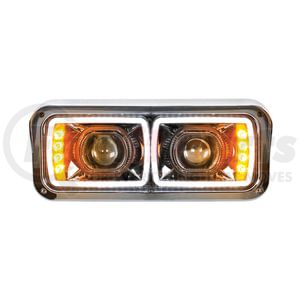

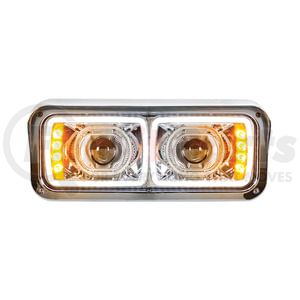

Name: United Pacific 31155 Projection Headlight Assembly - RH, LED, Chrome Housing, High/Low Beam, with LED Signal Light and Position Light Bar
SKU: 31155
Price: 272.99 USD
Availability: InStock

UNITED PACIFIC part description

Product Description

High Power LED "Chrme" Prjctn HeadLght, LED Turn Signal & Pos Lghtbr-Passenger

Application Summary

Freightliner Classic
International 4800
Kenworth T600
Kenworth T800
Kenworth W900B
Kenworth W900L
Peterbilt 357
Peterbilt 365
Peterbilt 378
Peterbilt 379
Western Star 4900EPA
Western 4900FA
Western 6900

Features & Benefits

With high beam and low beam

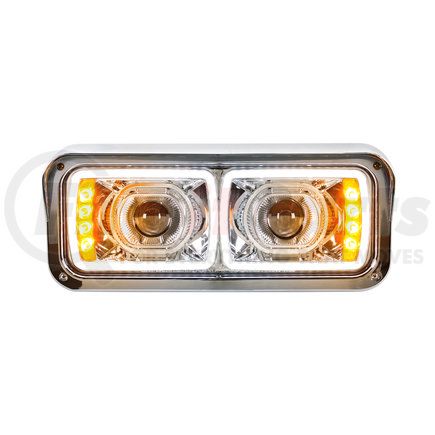

Comes with LED turn signal and position light bar
DOT, SAE, and FMVSS 108-approved headlight
Hand assembled with pride in the U.S.A.
Compatible with Peterbilt 357/365/378/379 with OE dual 4"X6" headlight housing
Also fits fender mounted headlights on Kenworth T600/T800/W900, Freightliner Classic, Western Star 4800/4900/6900 series

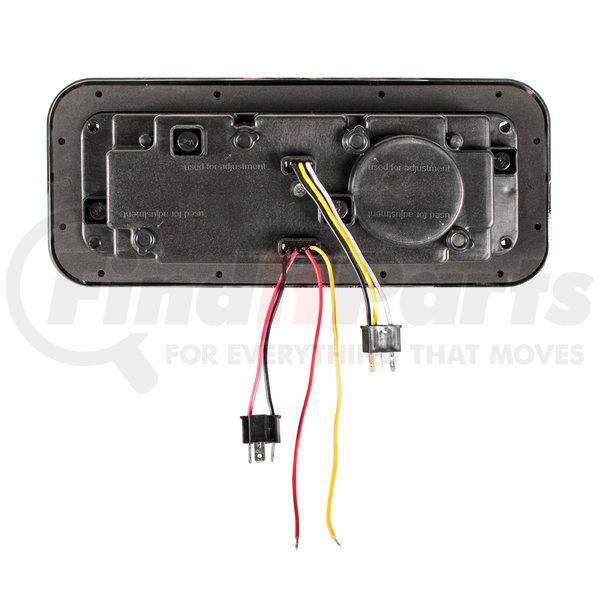

Offers OEM fit to plug directly into the existing wiring harness

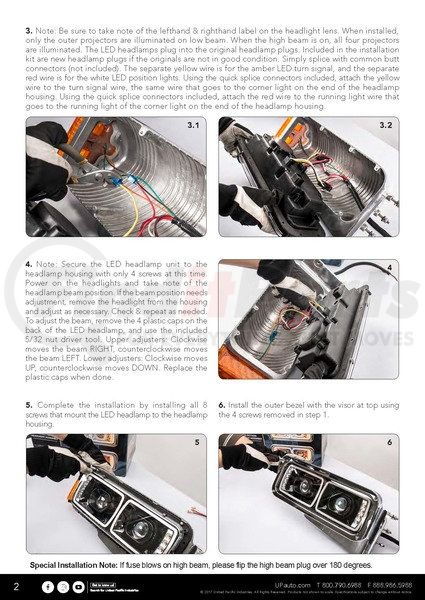

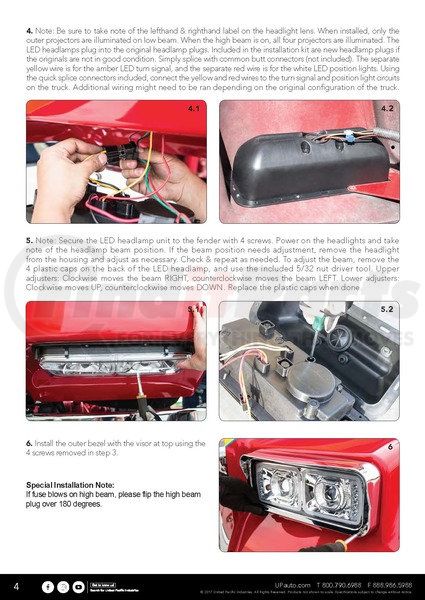

Position light & turn signal requires additional wiring

United Pacific High-Power LED “Chrome” Projection Headlight

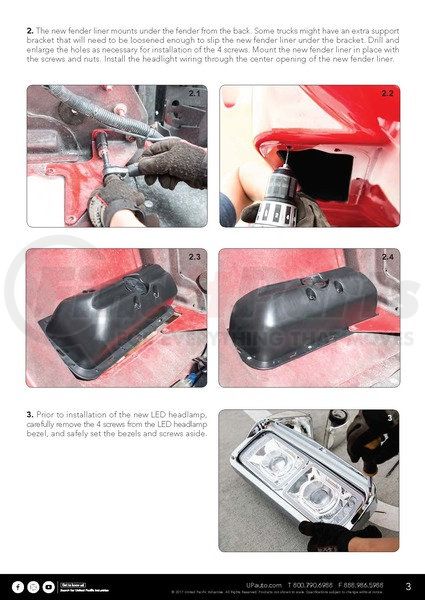

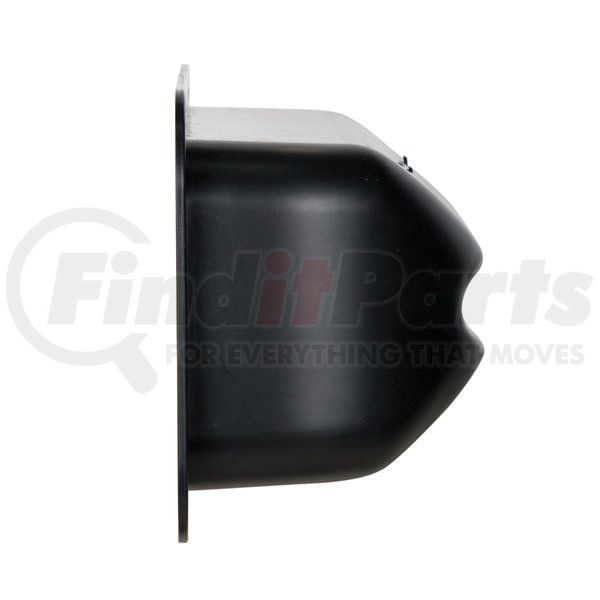

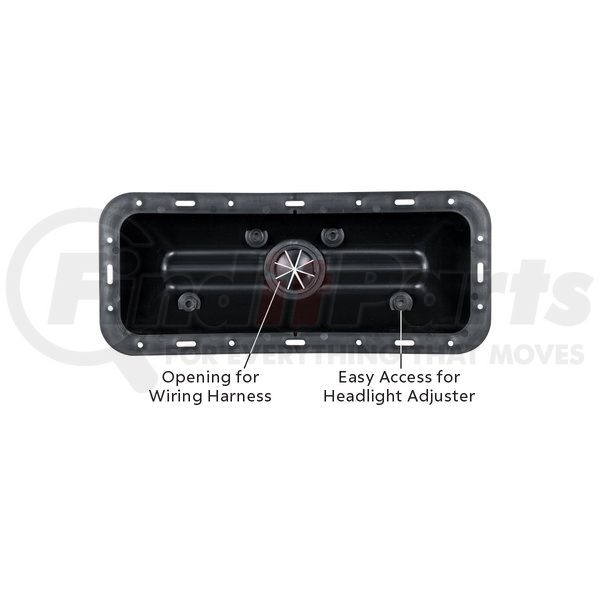

With its universal design, the United Pacific high-power LED “chrome” projection headlight matches vehicles that are fitted with dual 4"X6" fender mounted headlights. It features a durable fender liner included to shield the rear portion of the headlight against road salt, water, and debris.

Product Attributes

Voltage	12V
Beam Type	High/Low
Bulbs Included	Yes
Lens Color	Clear
Lens Material	Plastic
Headlight Type	Assembly
Housing Color	Chrome
8363	1500 Lumens (Low Beam), 2100 Lumens (High Beam)
Amperage Rating	5.8 Amps
Bulb Technology	LED
Certification	DOT/SAE/FMVSS 108
Location	Passenger Side

United Pacific® is a designer, manufacturer, and supplier of automotive products for classic cars and heavy duty trucks. It's an industry leader that carries over 20,000 top-quality and innovative products such as lighting components, car care products, interior and exterior accessories, motorcycle products, chassis and suspension parts, and automotive tools. It is an international company that searches for the best and most reliable components around the world and uses them to assemble each United Pacific product in the USA. With its over 30 years of industry experience, United Pacific is committed to designing and developing only the best products and delivering topnotch customer service worldwide.

Fits Vehicles

Western Star 4900FA (2002-2019)
Peterbilt 365 (2008-2019)
Peterbilt 378 (1988-2007)
Peterbilt 379 (1986-2007)
Peterbilt 357 (1986-2008)
Kenworth W900 (1983-2022)
Kenworth T800 (1987-2020)
Kenworth T600A (1986-2007)
Freightliner Classic (2001-2010)
