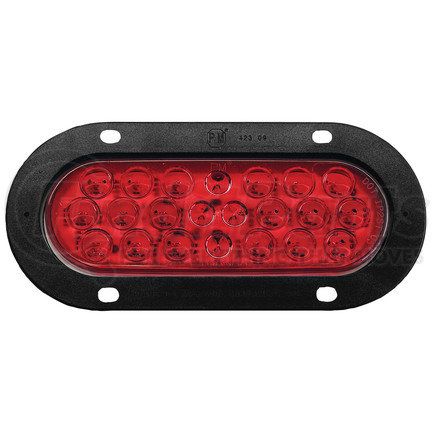

Peterson Lighting 823R-22 - 820-22/823-22 Series Piranha® LED 6" Oval Stop/Turn/Tail and Amber Park/Turn Light - Red Flange Mount
- Part Number
- 823R-22
- Manufacturer
- PETERSON LIGHTING
- Description
-
820-22/823-22 Series Piranha® LED 6" Oval Stop/Turn/Tail and Amber Park/Turn Light - Red Flange Mount
details
$17394
Package Price for 6 Units
@ $28.99 per unit
In stock
limited availability at this price!
. Learn more
PETERSON LIGHTING part description
820-22/823-22 Series Piranha® LED 6" Oval Stop/Turn/Tail and Amber Park/Turn Light
Peterson Lighting Piranha® LED 6" Oval Stop/Turn/Tail & Amber Park/Turn Light
For enhanced trucking safety, equip your truck with a high-quality Peterson Lighting Piranha® LED 6" oval stop/turn/tail & amber park/turn light. This product effectively combines all three crucial functions—stop, turn, and tail— into one industry-standard light, and it comes with an auxiliary park function too.
Features & Benefits
- An original flange-mount 6” 22-diode light with white diodes behind the lens
- Comes with an AMP-compatible connector and flange that is integrated into the housing to form a single unit
- Provides voltage protection and consistent light output over the entire voltage range with its regulated design
- Product’s operating range is 9 to 16 volts
- Must be mounted in any 360-degree orientation to meet FMVSS 108 requirements
- Engineered to meet the needs of any stop tail turn lighting situation
Product Description
LED STOP/TURN/TAIL, OVAL, 6.5x2.25 12V
Features & Benefits
- 22 diodes.
- Defender harness & lighting system approved.
- Lumenx® lens and circuitry.
- Made in USA.
- Voltage Regulated.
- Original 22-diode Piranha multi-diode lens look.
- AMP-compatible connector integrated into housing.
- Advanced white diodes behind red lens.
- 823-22 has flange welded to light, forming a single unit.
- 420 kit includes light, grommet, and 417-491 adapter harness with PL3 plug.
- 423 kit includes light and 417-491 adapter harness with PL3 plug.
- 9–16 volt operating range.
- Regulated design provides voltage protection and consistent light output over a wide voltage range.
- Meets FMVSS 108 req. in horizontal, vertical or any 360° position.
- See Peterson Master Catalog page 39 for matching amber turn signal.
B421-18: grommet (mfg. pack - std qty 100)
Product Attributes
| Bulb Technology | LED |
| Bulb/diode Count | 22 |
| California Proposition 65 Required | Y |
| Container Type | poly bag |
| Family | Piranha |
| Height | 3.63 in |
| Integral Reflex | N |
| Length | 7.88 in |
| Lens Color | red |
| Light Color | red |
| Marine Use | Y |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | flange |
| Multi-volt | N |
| Regulatory Compliance | DOT |
| Shape | oval |
| Termination | AMP |
| Voltage | 12 Volts |
| Width | 1.45 in |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8512204000 |
| UPC | 00044464997513 |
| VMRS Code | 034002059 |
Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
