Name: Reach Cooling 42-10336 Radiator
SKU: 4210336
Price: 2333.02 USD
Availability: OutOfStock

REACH COOLING part description

Application Summary: Peterbilt (2007-95); Models - 357, 375, 378, 379

Features & Benefits

Includes: Radiator, Tank
OVERSIZE SHIPPING FEES MAY APPLY
Core Material: Copper

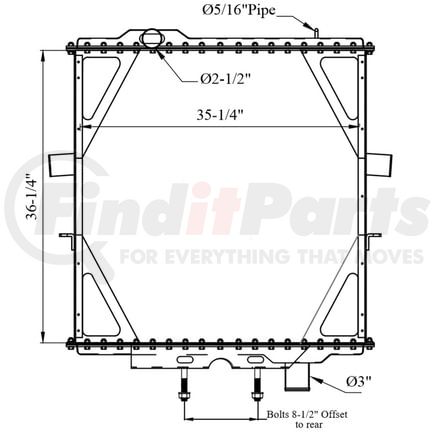

Core Height: 36 1/4 Inches
Core Width: 34 3/8 Inches
Depth: 2 7/8 Inches
Rows: 3
Inlet: 2 1/2 Inches - Upper Left
Outlet: 3 Inches - Lower Right

Make	Peterbilt
Model	Conventionals

Product Description

Radiator

Application Summary

1993 Peterbilt 379; 1995-2000 Peterbilt 377; 1995-2007 Peterbilt 357 / 378 / 379; 1996-2007 Peterbilt 385; 2006-2007 Peterbilt 387

Features & Benefits

Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Our fin edges are folded for increased stability and heat disbursement properties.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Folded fin edges increase stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Core Thickness	2 4/5 IN
Core Row Quantity	4
Outlet Diameter	3 IN
Tank Material	Brass
Core Width	35 1/4 IN
Inlet Diameter	2 1/2 IN
Core Height	36.25 IN
Core Material	Copper
Down Flow Or Cross Flow Type	Down Flow
Frame Included	No
Inlet Diameter	63.5 MM
Radiator Cap Included	Not Needed
Core Height	920.75 MM
Outlet Diameter	76.2 MM
Outlet Location	Lower Right
Core Width	895.35 MM
Core Width	895.4 MM
Core Thickness	71.1 MM
Inlet Diameter	63.5 mm
Core Height	921 MM
Transmission Oil Cooler Included	No
Core Thickness	71.12 MM
Inlet Location	Upper Left
Outlet Diameter	76 MM
Engine Oil Cooler Included	No

Part Interchanges

REACH COOLING 42-10336 Cross Reference

We have 78 alternatives for the 42-10336 by REACH COOLING:

Fits Vehicles

Peterbilt 387 (2006-2007)
Peterbilt 377 (1995-2001)
Peterbilt 385 (1996-2007)
Peterbilt 379 (1993, 1995-2007)
Peterbilt 378 (1995-2007)
Peterbilt 357 (1995-2007)

Founded in 1999, Reach Cooling® is a worldwide leader in the manufacture and distribution of aftermarket cooling products for light, medium, and heavy duty truck applications. Its fasting-growing division is within its medium and heavy duty truck part sector, offering more than 30 HD condensers, more than 50 HD charge air coolers, and more than 100 HD radiators. All these products are manufactured to meet the highest OE standards to fit some of the most popular US truck makes, including Peterbilt, Mack, International, Isuzu, GMC, Ford, and Freightliner. Headquartered in Miami, Florida, Reach Cooling is fully committed to providing customers with only the best products, most competitive prices, and exceptional service.
