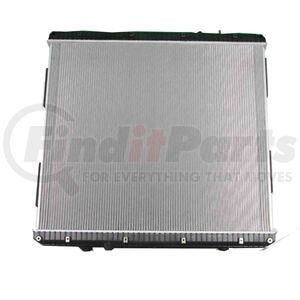

Name: Reach Cooling 42-10289 Radiator
SKU: 4210289
Price: 847.99 USD
Availability: InStock

REACH COOLING part description

Includes	One (1) Radiator
Core Material	Aluminum
Tank Material	Plastic
Thickness	1-7/8 (Inches)

Application Summary: Volvo (2017-2008) VAH, VHD, VNL; Mack (2017-2008) GXU Vision, CXU600; Engines: Volvo D11, D12, D13, D16; Cummins ISX; Mack MP7, MP8

Make	Volvo, Mack
Model	VN
Year	2008, 2009, 2010, 2011, 2012, 2013, 2014

Product Description

Radiator

Application Summary

2017 Volvo VHD; 08-17 Mack CXU/ Volvo VNL/ VNM; 11-13 Volvo VAH; 15-16 Volvo VNX; 15-18 Mack Granite/ Vision

Features & Benefits

Our fin edges are folded for increased stability and heat disbursement properties.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Folded fin edges increase stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Inlet Diameter	2.5 IN
Core Thickness	1 7/8 IN
Core Material	Aluminum
Outlet Diameter	2.5 IN
Tank Material	Plastic
Down Flow Or Cross Flow Type	Down Flow
Core Height	40 1/2 IN
Transmission Oil Cooler Distance between Fittings	11 1/2 IN
Core Width	34 3/16 IN
Core Row Quantity	2
Transmission Oil Cooler Type	11 1/2 In. Fan Side
Frame Included	No
Core Height	1028.7 MM
Threaded Size-3	7/8-14UNF
Inlet Header Length	35 3/16 IN
Transmission Oil Cooler Included	Yes
Inlet Header Width	2.812 IN
Inlet Diameter	63 MM
Engine Oil Cooler Included	No
Inlet Header Width	71.424 mm
Outlet Diameter	63.5 MM
Outlet Header Length	893.8 MM
Inlet Diameter	63.5 mm
Outlet Header Length	893.749 mm
Threaded Size-1	7/8-14UNF*3/4-16UNF
Threaded Size-5	7/8-14UNF*13/16-16UN
Threaded Size-6	7/8-14UNF
Inlet Header Length	893.8 MM
Outlet Header Width	71.4 MM
Transmission Oil Cooler Distance between Fittings	292.1 MM
Inlet Header Length	893.749 mm
Outlet Header Width	71.424 mm
Transmission Oil Cooler Distance between Fittings	292.1 MM
Outlet Header Width	2 13/16 IN
Radiator Cap Included	Not Needed
Core Width	868.349 MM
Outlet Header Length	35.187 IN
Outlet Diameter	64 MM
Threaded Size-4	7/8-14UNF*3/8-18NPTM
Threaded Size-7	7/8-14UNF*7/8-14UNF
Core Height	1028.7 MM
Core Thickness	47.6 MM
Core Width	868.4 MM
Inlet Header Width	71.4 MM
Core Thickness	47.625 MM
Fitting Connection Type	Threaded
Outlet Location	Lower Right
Threaded Size-2	7/8-14UNF*3/4-16UNF
Inlet Location	Upper Left

Additional Information

Warranty Special	12 Months
Country of Origin (Primary)	CN
UPC	06949521788230
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10289 Cross Reference

We have 133 alternatives for the 42-10289 by REACH COOLING:

Fits Vehicles

Mack Vision (2015-2018)
Mack Granite (2015-2018)
Volvo VNX (2015-2017)
Volvo VHD (2017)
Volvo VNM (2008-2017)
Volvo VNL (2008-2017)
Volvo VAH (2011-2013)
Mack CXU (2008-2017)
