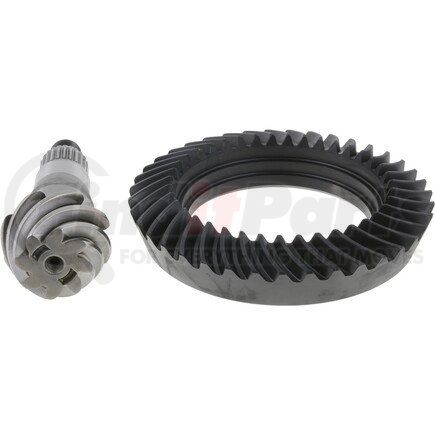

(888) 312-8812 Login SignupDANA 10026639 Differential Ring and Pinion - Front, 4.88 Gear Ratio, Reverse Rotation
Tap to view 1 more
$43249
118 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
DANA 10026639 Part Description
Manufacturer
Features & Benefits
- Superior Metallurgy: Ensures more consistent, higher quality product
- Hobbed and Shaved Gearing: Provides optimal mating to minimize stress and maximize life
- Precision heat-treating and shot-peening delivers consistent quality, enhanced life by reducing residual stress doubling the fatigue life of the gear
- High-grade steel for maximum durability
| Axle Model: | DANA 30 FRONT |
| Gear Ratio: | 4.88 |
| Ring Teeth Count: | 39 |
| Ring Gear Diameter: | 7.320 in. |
| Ring Gear Bolt Qty: | 10 |
| Ring Gear Rotation: | Reverse |
| On Vehicle Location: | Front |
| Ring Gear Bolt Thread In.: | .375-24 |
| Cover Bolt Quantity: | 12 |
| Pinion Shaft Diameter: | 1.630 |
| Pinion Spline Count: | 24 |
| Include Installation Kit: | N |
| Axle Type: | M186 |
| Pinion Gear Included: | Y |
| Ring Gear Included: | Y |
| New Or Remanufactured: | New |
DANA 10026639 Specifications
Product Attributes
| Axle Model | DANA 30 FRONT |
| Gear Ratio | 4.88 |
| Ring Teeth Count | 39 |
| Carrier Breaks | 3.73 And Up |
| Cover Bolt Quantity | 12 |
| Include Installation Kit | N |
| On Vehicle Location | Front |
| Pinion Gear Tooth Quantity | 8 |
| Pinion Shaft Diameter | 1.630 IN |
| Pinion Spline Count | 24 |
| Ring Gear Bolt Qty | 10 |
| Ring Gear Bolt Thread In. | .375-24 IN |
| Ring Gear Diameter (In.) | 7.320 IN |
| Ring Gear Rotation | Reverse |
| Axle Type | M186 |
| New Or Remanufactured | New |
| Shims Included | N |
| Pinion Gear Included | Y |
| Ring Gear Included | Y |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708507200 |
| Harmonized Tariff Code (HTS) | 8708507200 |
| UPC | 00023913495336 |
DANA 10026639 Part Interchanges
| Brand | Part Number |
|---|---|
| Yukon Gear | YG D30SR-488JK |
DANA 10026639 Fits Vehicles
- Jeep Wrangler JK (2018)
- Jeep Wrangler (2007-2021)
