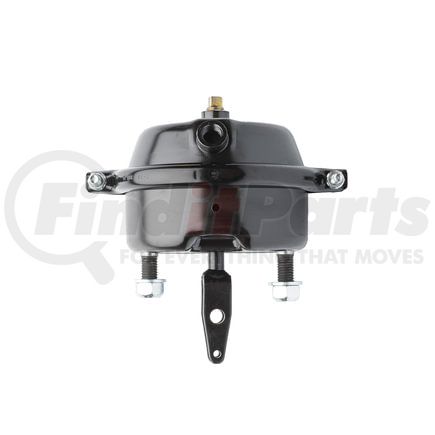

Haldex SC24XLHDCW - Air Brake Chamber - Type 24, Single Diaphragm, 3 in. Stroke Length, Extra Long Stroke
$6149
MSRP: $94.76
Save: $33.27
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
HALDEX part description
Product Description
Service Chamber HD, Type 24, Clockwise, 3.0" Stroke
Application Summary
24 CHAMBER 3.0" STROKE
Features & Benefits
- Has powder-coated steel pressure housing with resistance welded air ports for long-term durability
- World-class diaphragm that’s made of high-quality rubber compound for superior flexibility and heat- and cold-resistance
- With sturdy powder-coated service housing that can withstand corrosion
- Orange Alert® Stroke Indicator effectively informs the user if brake maintenance is required
- Self-piloting dust shield extends air brake system lifespan
Haldex Air Brake Chamber
Keep the air brake system on your medium and heavy duty trucks, trailers, and off-highway vehicles working at its peak performance with a high-quality Haldex air brake chamber. This T24 service chamber is specially designed to resist extreme temperatures and can fit most drum brake applications.
Product Attributes
| Diaphragm Type | Single |
| Ram Stroke | 3 in. |
| Air Port Thread Diameter | 3/8-18 NPTF |
| Air Port Position | 90° |
| Clevis Pin Length | 2.25 in. |
| Freight Class | 70 |
| Maximum Pressure | 150 PSI |
| Service Chamber Size | 24 |
| Service Clampband Position | 0° |
| Service Clampband Size | 7.5 in. |
| Stroke Type | Extra Long |
| Stud Distance | 4.75 in. |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412310080 |
| Harmonized Tariff Code (HTS) | 8412310080 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | See Haldex Aftermarket Product warranty Policy (L20221W).pdf |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653370736 |
| VMRS Code | 013010034 |
Part Interchanges
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
