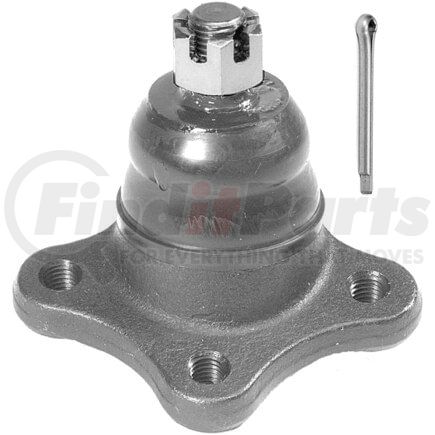

Delphi TC588 - Ball Joint
$2049
MSRP: $30.06
Save: $9.57
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.520 IN |
| Maximum Outside Diameter | 64.00 MM |
| Color | Gray |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 72 MM |
| Type | Premium |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 30.30 MM |
| Washers Included | Yes |
| Height | 2.559 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.768 IN |
| Stud Thread Length | 19.5 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 61.00 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 8.00 MM |
| Mounting Bolt Head Diameter | 15.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 25.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.591 IN |
| Stud Tapered End 2 Diameter | 15 MM |
| 9213 | 0.535 IN |
| Stud Tapered End 1 Diameter | 13.6 MM |
| Stud Thread Pitch | 1.25 MM |
| Stud Thread Diameter | 0.47 IN |
| 3068 | 1.190 IN |
| Height | 65.00 MM |
| 9202 | 0.310 IN |
| 9203 | 0.590 IN |
| 9207 | 0.980 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604272367 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Mazda B2600 (1987-1993)
- Mazda B2200 (1987-1993)
- Mazda B2000 (1986-1987)
