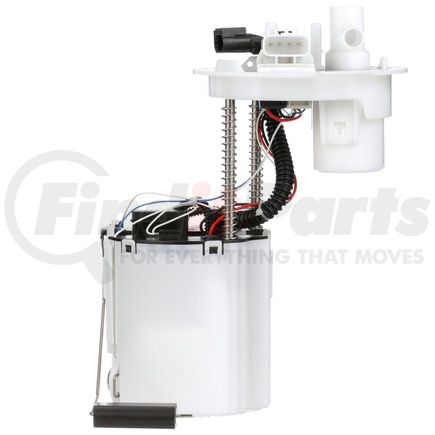

(888) 312-8812 Login SignupDELPHI FG1743 Fuel Pump Module Assembly
MSRP: $734.43
$63249
Save $101.94
Limited availability at this price!
In Stock
Get it by Friday, Jan 2
DELPHI FG1743 Part Description
DELPHI FG1743 Specifications
Product Attributes
| Vapor Pressure Sensor | Yes |
| Item Grade | Standard Replacement |
| Fuel Level Sender Assembly Included | Yes |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| System Pressure | 58 psi |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 83 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 250 82 |
| Resistance Ohms Full | 40 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 11 68 |
| Average Flow Rating | 34 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 58 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | Yes |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604280966 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG1743 Part Interchanges
| Brand | Part Number |
|---|---|
| Spectra Premium | SP6635M, SP6677M |
| Carter | P76881M |
| ACDelco | M100032, M100052, M100150, M100156 |
| AutoZone | DFG1743 |
| General Motors | 13578371, 13578375, 13594131 |
| Airtex | E4030M, E4074M |
| Precision Fuel | A33209 |
| N/A | USEP4030M, D0387M |
DELPHI FG1743 Fits Vehicles
- Cadillac XTS (2013)
- Chevrolet Malibu (2013)
- Buick Regal (2012-2016)
- Buick LaCrosse (2012-2016)
DELPHI FG1743 Customer Reviews
No reviews yet
Be the first to review this product!
