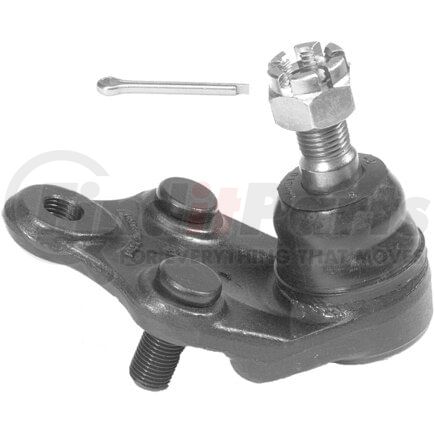

Delphi TC636 - Ball Joint
$2899
MSRP: $38.60
Save: $9.61
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.362 IN |
| Maximum Outside Diameter | 60.00 MM |
| Color | Gray |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 123.5 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 0.787 IN |
| Mounting Bolt Length | 20.00 MM |
| Washers Included | No |
| Height | 3.681 IN |
| Height | 80.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.945 IN |
| 839 | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 12.00 MM |
| 9203 | 0.827 IN |
| Mounting Bolt Head Diameter | 21.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 17.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| 9212 | 0.61 IN |
| Stud Tapered End 2 Diameter | 15.5 MM |
| 9213 | 0.717 IN |
| Stud Tapered End 1 Diameter | 18.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Stud Thread Diameter | 0.55 IN |
| Stud Thread Length | 24 MM |
| 9202 | 0.470 IN |
| 9207 | 0.670 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604270158 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Toyota Corolla (1988-1993)
- Geo Prizm (1989-1992)
