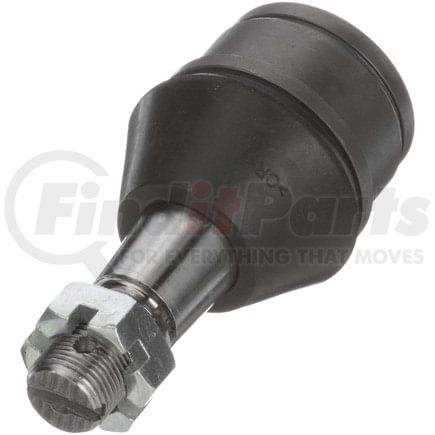

Delphi TC2206 - Ball Joint
$4949
MSRP: $118.32
Save: $68.83
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.177 IN |
| Maximum Outside Diameter | 55.30 MM |
| Color | Gray |
| Stud Thread Diameter | 20 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 55.3 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 4.882 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greasable | Yes |
| 4966 | 1.181 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| 9212 | 0.882 IN |
| Stud Tapered End 2 Diameter | 22.4 MM |
| 9213 | 1.035 IN |
| Stud Tapered End 1 Diameter | 26.3 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 124.00 MM |
| Length | 4.880 IN |
| Stud Thread Diameter | 0.79 IN |
| Height | 124.00 MM |
| Stud Thread Length | 30 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604275153 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Dodge Ram 3500 (1997-1999)
- Dodge Ram 2500 (1997-1999)
