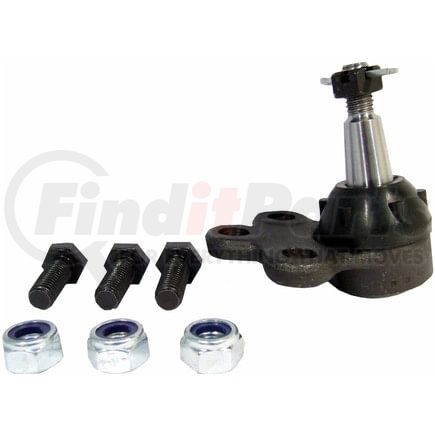

Delphi TC1834 - Ball Joint
$4749
MSRP: $67.06
Save: $19.57
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.063 IN |
| Maximum Outside Diameter | 27.00 MM |
| Color | Gray |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 101 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.181 IN |
| Mounting Bolt Length | 30.00 MM |
| Washers Included | Yes |
| Height | 3.701 IN |
| Height | 95.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| 4966 | 0.866 IN |
| 839 | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 12.00 MM |
| 9203 | 0.827 IN |
| Mounting Bolt Head Diameter | 21.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.75 MM |
| Mounting Bolt Thread Length | 27.50 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| 9212 | 0.591 IN |
| Stud Tapered End 2 Diameter | 15 MM |
| 9213 | 0.768 IN |
| Stud Tapered End 1 Diameter | 19.5 MM |
| Stud Thread Pitch | 1.75 MM |
| Stud Thread Diameter | 0.47 IN |
| Stud Thread Length | 22 MM |
| 9202 | 0.470 IN |
| 9207 | 1.080 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604275627 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Oldsmobile Aurora (1997-1999, 2001-2003)
- Cadillac DeVille (1997-1999)
- Saturn Relay (2005-2007)
- Chevrolet Impala Limited (2014-2016)
- Chevrolet Captiva Sport (2012-2015)
- Suzuki XL-7 (2007-2009)
- Buick Allure (2005-2009)
- Pontiac Torrent (2006-2009)
- Chevrolet Uplander (2005-2009)
- Buick LaCrosse (2005-2009)
- Buick Terraza (2005-2007)
- Chevrolet Equinox (2005-2009)
- Saturn Vue (2002-2010)
- Pontiac Trans Sport (1997-1999)
- Pontiac Montana (1999-2009)
- Pontiac Grand Prix (1997-2008)
- Pontiac Aztek (2001-2005)
- Oldsmobile Silhouette (1997-2004)
- Oldsmobile Intrigue (1998-2002)
- Chevrolet Venture (1997-2005)
- Chevrolet Monte Carlo (2000-2007)
- Chevrolet Impala (2000-2013)
- Cadillac Seville (1997)
- Cadillac Eldorado (1997-2002)
- Buick Rendezvous (2002-2007)
- Buick Regal (1997-2004)
- Buick Century (1997-2005)
