Delphi TC1690 - Ball Joint
$4549
MSRP: $63.54
Save: $18.05
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description

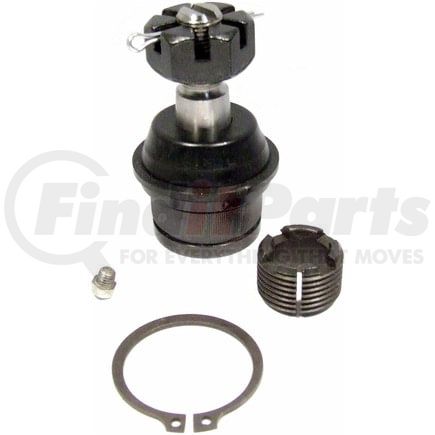

Ball Joint
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.890 IN |
| Maximum Outside Diameter | 48.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.625 IN |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 48 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 4.114 IN |
| Nuts Included | Yes |
| Greasable | Yes |
| 4966 | 1.142 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| 9212 | 0.717 IN |
| Stud Tapered End 2 Diameter | 18.2 MM |
| 9213 | 0.827 IN |
| Stud Tapered End 1 Diameter | 21 MM |
| Stud Threads Per Inch | 18 |
| Stud Thread Diameter | 15.88 MM |
| Height | 104.50 MM |
| Stud Thread Length | 29.01 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604275818 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Jeep TJ (1997-2006)
- Jeep Grand Wagoneer (1993)
- Jeep Grand Cherokee (1993-1998)
- Jeep Wrangler (1987-1995, 1997-2006)
- Jeep Wagoneer (1984-1990)
- Jeep Comanche (1986-1992)
- Jeep Cherokee (1984-2001)
