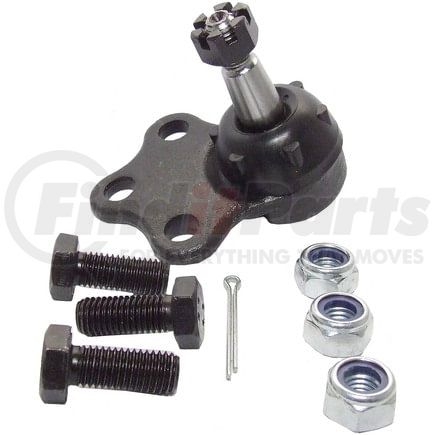

Delphi TC1619 - Ball Joint
$3049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Color | Gray |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 97 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.181 IN |
| Mounting Bolt Length | 30.00 MM |
| Washers Included | Yes |
| Height | 3.346 IN |
| Height | 84.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| 4966 | 0.787 IN |
| 839 | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 12.00 MM |
| 9203 | 0.827 IN |
| Mounting Bolt Head Diameter | 21.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.75 MM |
| Mounting Bolt Thread Length | 27.50 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| 9212 | 0.524 IN |
| Stud Tapered End 2 Diameter | 13.3 MM |
| 9213 | 0.638 IN |
| Stud Tapered End 1 Diameter | 16.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Stud Thread Diameter | 0.47 IN |
| Stud Thread Length | 19.99 MM |
| 9202 | 0.470 IN |
| 9207 | 1.080 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604277195 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Chevrolet Classic (2004-2005)
- Oldsmobile Cutlass (1997-1999)
- Oldsmobile Alero (1999-2004)
- Chevrolet Malibu (1997-2003)
- Pontiac Tempest (1987-1991)
- Pontiac Sunfire (1995-2005)
- Pontiac Sunbird (1986-1994)
- Pontiac J2000 Sunbird (1984-1985)
- Pontiac J2000 (1982-1983)
- Pontiac Grand Am (1985-2005)
- Oldsmobile Firenza (1982-1988)
- Oldsmobile Cutlass Calais (1988-1991)
- Oldsmobile Calais (1985-1987)
- Oldsmobile Achieva (1992-1998)
- Chevrolet Corsica (1987-1996)
- Chevrolet Cavalier (1982-2005)
- Chevrolet Beretta (1987-1996)
- Cadillac Cimarron (1982-1988)
- Buick Somerset (1986-1987)
- Buick Skylark (1986-1998)
- Buick Skyhawk (1982-1989)
