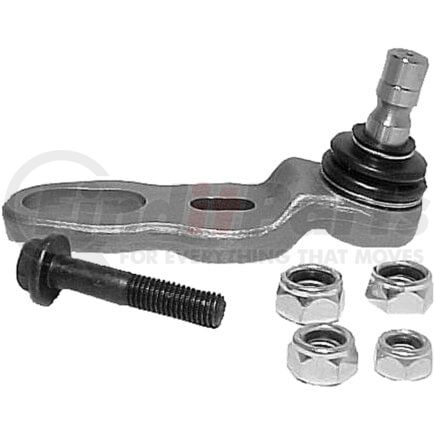

Delphi TC1616 - Ball Joint
$5749
MSRP: $80.42
Save: $22.93
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Upper |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Color | Gray |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 173 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| 3068 | 2.362 IN |
| Mounting Bolt Length | 60.00 MM |
| Washers Included | No |
| Height | 3.307 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greasable | No |
| Stud Thread Length | 84 MM |
| 839 | 16mm |
| Stud Type | Non-Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 56.90 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 12.00 MM |
| 9203 | 1.047 IN |
| Mounting Bolt Head Diameter | 26.60 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.75 MM |
| Mounting Bolt Thread Length | 33.00 MM |
| Mount Plate Included | No |
| Tapered Stud | No |
| Height | 84.00 MM |
| 4966 | 3.31 IN |
| 9202 | 0.470 IN |
| 9207 | 1.300 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604278314 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Mercury Grand Marquis (1992-1994)
- Lincoln Town Car (1991-1994)
- Ford Crown Victoria (1992-1994)
