DELPHI part description

Product Description

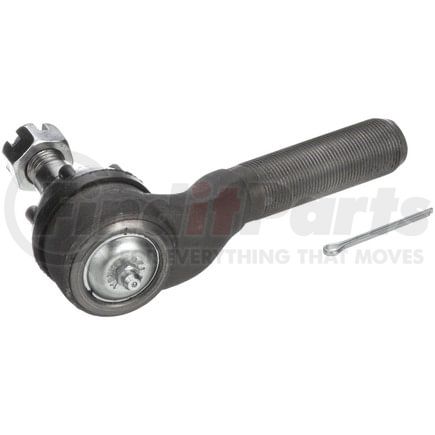

Tie Rod End

Product Attributes

Position(s) Right Outer
Item Grade Standard Replacement
Length 170.00 MM
Color Gray
End 1 Gender Male
End 2 Gender Male
Pre-Greased Yes
Grease Fitting Included Yes
Dust Boot Included Yes
Width 44 MM
Type Bent
Mounting Hardware Included Yes
End 2 Thread Diameter 14.00 MM
Height 115.00 MM
Grade Type Standard
Housing Material Steel
Adjustable No
Greasable Yes
Weight 1.65 lb
Bearing Material Plastic
End 1 Thread Direction Clockwise (Right)
End 2 Thread Direction Clockwise (Right)
Grade Premium
Stud Type Threaded
End 2 Thread Pitch 1.5 MM
End 1 Thread Pitch 1.5 MM
Length Stud Center to End 148.00 MM
Dust Boot Material Rubber
Tie Rod Material Steel
End 1 Thread Diameter 22.00 MM
End 2 Thread Diameter 0.551 IN
Length Stud Center to End 5.827 IN
End 1 Thread Diameter 0.866 IN

Additional Information

Harmonized Tariff Code (HTS) 8708998180
Warranty Special Limited Lifetime
Warranty Special UOM LF
Country of Origin (Primary) TR
Harmonized Tariff Code (Schedule B) 8708998175
UPC 00689604274750
VMRS Code 015004019
UNSPSC 25174205

Part Interchanges

Fits Vehicles

  • Ford F-250 (1985-1995)
