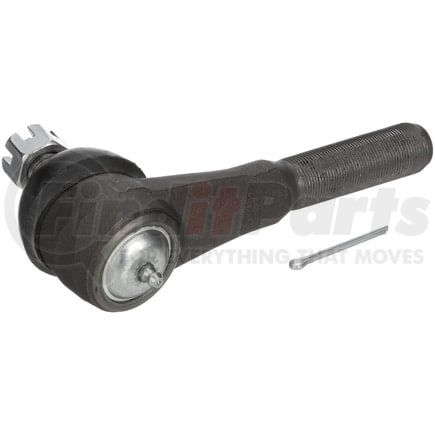

Delphi TA2529 - Tie Rod End
$2949
MSRP: $47.12
Save: $17.63
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 190.00 MM |
| Color | Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 54 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.625 IN |
| Height | 97.00 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Adjustable | No |
| Greasable | Yes |
| Weight | 2.41 lb |
| Bearing Material | Steel |
| End 1 Thread Direction | Counterclockwise (Left) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| Length Stud Center to End | 163.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Threads Per Inch | 18 |
| End 1 Thread Diameter | 0.875 IN |
| End 2 Thread Diameter | 15.88 MM |
| End 1 Thread Diameter | 22.22 MM |
| Length Stud Center to End | 6.417 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604274743 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- GMC K25/K2500 Suburban (1971)
- GMC K15/K1500 Suburban (1971)
- GMC K25/K2500 Pickup (1969-1974)
- GMC K15/K1500 Pickup (1969-1974)
- Chevrolet K20 Pickup (1970-1974)
- Chevrolet K10 Pickup (1969-1974)
- GMC V3500 (1987-1991)
- GMC V2500 Suburban (1987-1991)
- GMC V2500 (1987)
- GMC V1500 Suburban (1987-1991)
- GMC V1500 (1987)
- GMC K3500 (1979-1986)
- GMC K35 (1977-1978)
- GMC K2500 Suburban (1979-1986)
- GMC K25 Suburban (1975)
- GMC K2500 (1979-1986)
- GMC K25 (1975)
- GMC K1500 Suburban (1979-1986)
- GMC K15 Suburban (1975)
- GMC K1500 (1979-1986)
- GMC K15 (1975)
- GMC Jimmy (1970-1991)
- Chevrolet V3500 (1989-1991)
- Chevrolet V30 (1987-1988)
- Chevrolet V2500 Suburban (1989-1991)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet V20 (1987)
- Chevrolet V1500 Suburban (1989-1991)
- Chevrolet V10 Suburban (1987-1988)
- Chevrolet V10 (1987)
- Chevrolet K30 (1977-1986)
- Chevrolet K20 Suburban (1971-1986)
- Chevrolet K20 (1975-1986)
- Chevrolet K10 Suburban (1971-1986)
- Chevrolet K10 (1975-1986)
- Chevrolet K5 Blazer (1975-1986)
- Chevrolet Blazer (1970-1974, 1987-1991)
