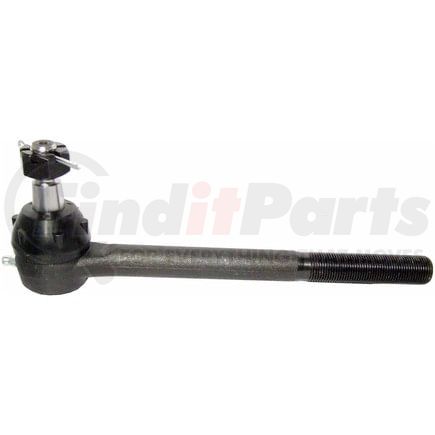

Delphi TA2296 - Steering Tie Rod End - RH, Inner, Non-Adjustable, Steel, Greaseable
$2849
MSRP: $42.02
Save: $13.53
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
Position(s) | Right Inner |
Item Grade | Standard Replacement |
Length | 247.0 MM |
Color | Gray |
End 1 Gender | Male |
End 2 Gender | Male |
Pre-Greased | Yes |
Grease Fitting Included | Yes |
Dust Boot Included | Yes |
Width | 44.0 MM |
Type | Straight |
Mounting Hardware Included | Yes |
End 2 Thread Diameter | 14.0 MM |
Height | 88.0 MM |
Grade Type | Standard |
Housing Material | High Strength Steel |
Adjustable | No |
Greasable | Yes |
Weight | 1.54 lb |
Bearing Material | Plastic |
End 1 Thread Direction | Counterclockwise (Left) |
End 2 Thread Direction | Clockwise (Right) |
Grade | Standard |
Stud Type | Threaded |
End 2 Thread Pitch | 1.5 MM |
End 1 Thread Pitch | 1.5 MM |
Length Stud Center to End | 225.0 MM |
Dust Boot Material | Choloroprene Rubber (CR) |
Tie Rod Material | Steel |
End 1 Thread Diameter | 18.0 MM |
Additional Information
Harmonized Tariff Code (Schedule B) | 8708998175 |
Country of Origin (Primary) | TR |
Harmonized Tariff Code (HTS) | 8708998180 |
Warranty Special | Limited Lifetime |
Warranty Special UOM | LF |
UPC | 00689604275979 |
VMRS Code | 015004070 |
UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Ford F-100 Ranger (1997-2001)
- Ford F-150 Heritage (2004)
- Lincoln Navigator (1998-2002)
- Lincoln Blackwood (2002-2003)
- Ford F-250 (1997-1999)
- Ford F-150 (1997-2003)
- Ford Expedition (1997-2002)
