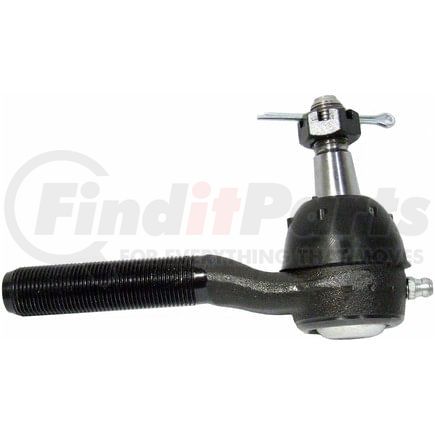

Name: Delphi TA2268 Tie Rod End
SKU: ta2268
Price: 14.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Inner
Item Grade	Standard Replacement
Length	136.50 MM
Color	Gray
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Width	38 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	12.00 MM
Height	82.00 MM
Grade Type	Standard
Housing Material	Steel
Adjustable	No
Greasable	Yes
Weight	1.18 lb
Bearing Material	Plastic
End 1 Thread Direction	Counterclockwise (Left)
End 2 Thread Direction	Clockwise (Right)
Grade	Premium
Stud Type	Threaded
End 2 Thread Pitch	1.25 MM
Length Stud Center to End	117.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Threads Per Inch	18
End 1 Thread Diameter	0.688 IN
End 1 Thread Diameter	17.48 MM
End 2 Thread Diameter	0.472 IN
Length Stud Center to End	4.606 IN

Additional Information

Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
UPC	00689604276044
VMRS Code	015004070
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Oldsmobile Toronado (1979-1985)
Oldsmobile Bravada (1991-1994, 1996-2001)
GMC Typhoon (1992-1993)
GMC Syclone (1991)
GMC Sonoma (1991-2004)
GMC S15 (1983-1990)
GMC Jimmy (1999-2005)
GMC S15 Jimmy (1983-1991)
Chevrolet S10 (1983-2004)
Chevrolet Blazer (1995-2005)
Chevrolet S10 Blazer (1983-1994)
Cadillac Seville (1980-1985)
Cadillac Eldorado (1979-1985)
Buick Riviera (1979-1985)
Isuzu Hombre (1998-2000)
