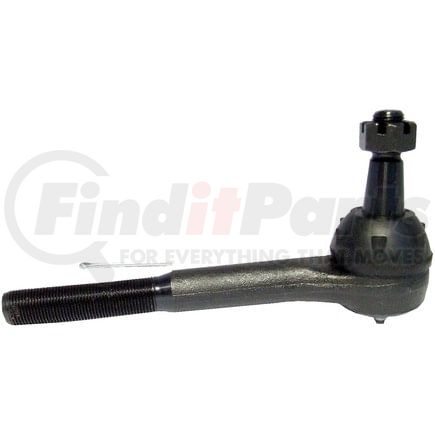

Delphi TA2137 - Tie Rod End
$1699
MSRP: $20.43
Save: $3.44
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 191.50 MM |
| Color | Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 43 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.563 IN |
| Height | 96.00 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Adjustable | No |
| Greasable | Yes |
| Weight | 1.64 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| Length Stud Center to End | 170.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Threads Per Inch | 18 |
| End 1 Thread Diameter | 0.688 IN |
| End 2 Thread Diameter | 14.30 MM |
| End 1 Thread Diameter | 17.48 MM |
| Length Stud Center to End | 6.693 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604278703 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- GMC P25/P2500 Van (1971-1974)
- GMC P15/P1500 Van (1973-1974)
- GMC G35/G3500 Van (1971-1974)
- GMC G25/G2500 Van (1971-1974)
- GMC C25/C2500 Suburban (1971-1974)
- GMC C25/C2500 Pickup (1971-1974)
- GMC C15/C1500 Suburban (1973-1974)
- GMC C15/C1500 Pickup (1973-1974)
- Chevrolet P30 Van (1971-1972)
- Chevrolet P20 Van (1971-1974)
- Chevrolet C10 Pickup (1973-1974)
- Chevrolet C10 Suburban (1973-1986)
- GMC G15/G1500 Van (1973-1974)
- Chevrolet P10 Van (1973-1974)
- Chevrolet G30 Van (1971-1974)
- Chevrolet G20 Van (1971-1974)
- Chevrolet G10 Van (1973-1974)
- Chevrolet Blazer (1973-1974)
- GMC R3500 (1987-1991)
- GMC R2500 Suburban (1987-1991)
- GMC R2500 (1987-1989)
- GMC R1500 Suburban (1987-1991)
- GMC R1500 (1987)
- GMC P3500 (1979-1999)
- GMC P35 (1975-1978)
- GMC P2500 (1979-1989)
- GMC P25 (1975-1978)
- GMC P1500 (1979-1980)
- GMC P15 (1975-1978)
- GMC Jimmy (1973-1982)
- GMC G3500 (1979-1982)
- GMC G35 (1975-1978)
- GMC G2500 (1979-1982)
- GMC G25 (1975-1978)
- GMC G1500 (1979-1982)
- GMC G15 (1975-1978)
- GMC C3500 (1979-1986)
- GMC C35 (1975-1978)
- GMC C2500 Suburban (1979-1986)
- GMC C25 Suburban (1975-1978)
- GMC C2500 (1979-1986)
- GMC C25 (1975-1978)
- GMC C1500 Suburban (1979-1986)
- GMC C15 Suburban (1975-1978)
- GMC C1500 (1979-1986)
- GMC C15 (1975-1978)
- Chevrolet R3500 (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet R2500 Suburban (1989-1991)
- Chevrolet R2500 (1989)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet R10 Suburban (1987-1988)
- Chevrolet R1500 Suburban (1989-1991)
- Chevrolet P30 (1975-1997)
- Chevrolet P20 (1975-1989)
- Chevrolet P10 (1975-1980)
- Chevrolet G30 (1975-1982)
- Chevrolet G20 (1975-1982)
- Chevrolet G10 (1975-1982)
- Chevrolet C30 (1975-1986)
- Chevrolet C20 (1975-1986)
- Chevrolet C10 (1975-1986)
- Chevrolet K5 Blazer (1975-1982)
