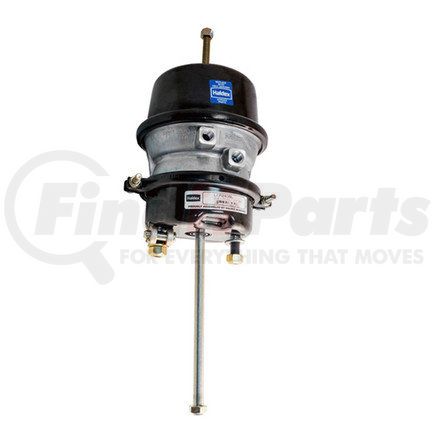

Name: Haldex LCP2430L Air Brake Spring Brake - LifeSeal+, Type 2430, 3 in. Stroke Length, Long Stroke
SKU: lcp2430l
Price: 125.99 USD
Availability: InStock

HALDEX part description

Product Description

LifeSeal+, 3.0" Stroke, HD Housing, Std Power Spring, Threaded Clevis

Application Summary

2430 LifeSeal+, Stroke 3.0", Pushrod 10.00", Heavy duty housing, Standard power spring, Threaded with clevis

Features & Benefits

Comes with truly sealed double diaphragm to effectively prevent contaminants from reaching the power spring
Uses standard power spring technology for unparalleled force output consistency
With heavy-duty housing to withstand impact and extreme conditions
Engineered smart and road-tested to ensure reliable, durable performance

Haldex LifeSeal+ Air Brake Spring Brake

Equip your vehicle with a high-quality Haldex LifeSeal+ air brake spring brake. This product is the only truly sealed double diaphragm spring brake specifically designed for heavy duty applications.

Product Attributes

Air Port Position	90°
Bracket to End of Spring Housing Length	9.7 in.
Freight Class	70
Piggyback Length	7.19 in.
Push Rod Diameter	5/8 in.
Push Rod Length	10 in.
Series	LifeSeal+
Service Chamber Size	24/30
Service Clampband Position	0°
Service Clampband Size	9.41 in.
Spring Housing Flange Size	8.19 in.
Stroke Length	3 in.
Stroke Type	Long
Stud Distance	4.75 in.

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8412310080
Harmonized Tariff Code (HTS)	8412310080
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	See Haldex Aftermarket Product warranty Policy (L20221W).pdf
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653370798
VMRS Code	013004027

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
