RAYBESTOS 582031R Part Description
Manufacturer
Product Description

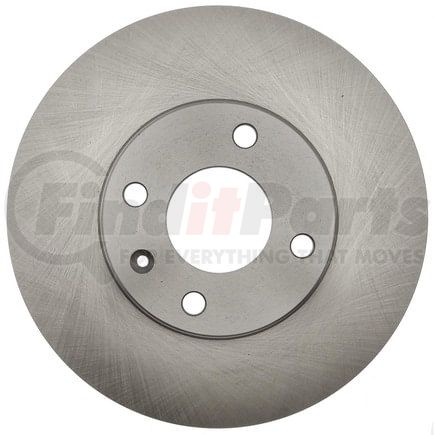

Raybestos R-Line Brake Rotor
Application Summary
2021-2016 Chevrolet Spark Front, 2017-2016 Chevrolet Spark Classic Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 582031R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.366 IN |
| Center Hole Diameter | 60.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 5.709 IN |
| Inside Diameter | 145 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 0.496 IN |
| Mounting Bolt Hole Diameter | 12.6 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 10.079 IN |
| Outside Diameter | 256 MM |
| Overall Height | 1.614 IN |
| Overall Height | 41 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Canadian Harmonizing Tariff Code | 8708309990 |
| UPC | 00887213217544 |
RAYBESTOS 582031R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH548502P |
| AutoZone | 72067DL |
| BRAKEBEST | 582031, 582031R |
| BrakeBest | 582031RGS |
| CENTRIC | 120.49012, 121.49012, 126.49012SL, 126.49012SR, 127.49012L, 127.49012R, 128.49012L, 128.49012R |
| Centric Parts | 120.49012, 121.49012, 126.49012SL, 126.49012SR, 127.49012L, 127.49012R, 128.49012L, 128.49012R |
| Dura Corp | BR901606, BR901606-01 |
| DuraGo | BR901606, BR901606-01 |
| Dynamic Friction Company | 604-47076 |
| GM | 13584674, 13584677, 13584679 |
| General Motors | 13584674, 13584677, 13584679 |
| MAGMA PRODUCTS | PMR223152 |
| NEWTEK AUTOMOTIVE | R1606 |
| Newtek Automotive USA | R1606 |
| PROMAX | 14-650006 |
| Qualis | 41343 |
| TopNotch | TN582031GEO |
| UAP | R49012 |
| WORLDPAC | 1407-548502 |
| Wagner Brake | BD180769E |
| Winhere | 6622103 |
RAYBESTOS 582031R Fits Vehicles
- Chevrolet Spark Classic (2016-2017)
- Chevrolet Spark (2016-2022)
