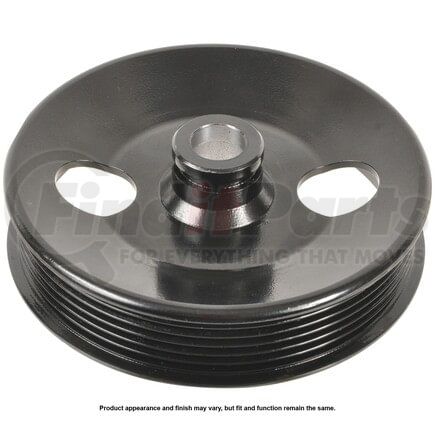

A-1 Cardone 3P-15124 - Power Steering Pump Pulley
- Part Number
- 3P-15124
- Manufacturer
- A-1 CARDONE
- Description
-
Power Steering Pump Pulley
details
$4349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
A-1 CARDONE part description
Product Description
Power Steering Pump Pulley
Application Summary
Cadillac 60 Special 1993, Allante 1992-91, Commercial Chassis 1993-91, DeVille 1995-91, Eldorado 1993-91, Fleetwood 1992-91, Seville 1993-91
Features & Benefits
- Direct replacement of original pulley.
- Simple installation with correct tools.
- Tested to meet same performance as O.E.
- Same grade material and gauge as O.E. for strength and durability.
- Pulley front fascia designed with O.E. cutouts for ease of pump removal or installation, where applicable.
Pulley, Power Steering Pump Pulley, PS Pulley, Steering Pulley
Product Attributes
| Color | Black |
| Package Contents | Pulley |
| Product Condition | New |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 1 |
| E-waste | No |
| Item Grade | Standard Replacement |
| Belt Type | Serpentine |
| Groove Quantity | 5 |
| Mount Type | Press-Fit |
| Outside Diameter (In) | 5.19 |
| FAQs | Yes, use of the correct tool based on engine application and pulley type is necessary to prevent damage to the pulley. |
| Features and Benefits | Same grade material and gauge as O.E. for strength and durability |
| Shaft Diameter (MM) | 19.00 |
| Width (Belt) (mm) | 125.00 |
| Belt Type | Serpentine |
| Bore Diameter | 0.748 IN |
| Bore Diameter | 19 MM |
| Color | Black |
| Contains Electronic Components | No |
| Does it require SDS | No |
| FAA_A1 | The age and continual flexing of a belt will cause it to crack and deteriorate. Stretching loosens the belt, causing it to slip on the pulleys. A cracked belt will eventually break. The tension and general condition of the belt should be checked periodically. |
| FAA_A2 | Yes, use of the correct tool based on engine application and pulley type is necessary to prevent damage to the pulley. |
| FAA_A3 | Pulleys are painted with weather resistant epoxy paint. |
| FAA_A4 | The replacement pulley should be pressed to the point where the hub is flush with the end of the shaft. |
| FAA_A5 | Accessory pulley alignment should be checked using a straightedge if a pulley alignment issue is suspected. The straightedge should lie flat across the fascia of two adjacent pulleys. If the straightedge does not lie flat, then one of the pulleys is misaligned. To validate which of the pulleys is causing the issue, check each against other pulleys until you isolate the one that is out of line. Pulley alignment can also be checked with a laser alignment tool. |
| FAA_A6 | Pulleys are typically made of plastic composite nylon or steel. |
| FAA_A7 | Flat, V-belt, and Multi groove. |
| FAQ_Q1 | How important is belt condition and tension? |
| FAQ_Q2 | Are there any special tools needed to remove and install the pulley? |
| FAQ_Q3 | Do you powder coat your pulleys? |
| FAQ_Q4 | How far should the replacement pulley be pressed on the shaft for correct alignment with the other accessory pulleys? |
| FAQ_Q5 | How can I check to see if the replacement pulley is aligned with the adjacent accessory pulleys? |
| FAQ_Q6 | What type of material are pulleys made of? |
| FAQ_Q7 | What are the different types of pulley designs? |
| Finish | Black Plastic |
| Groove Quantity | 6 |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
| Material | Plastic |
| Mount Type | Press-Fit |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 1 |
| Outside Diameter | 5.204 IN |
| Outside Diameter | 132.2 MM |
| Shaft Diameter | 19 MM |
| Shaft Diameter | 0.748 IN |
| Width | 22.27 MM |
| Width | 0.877 IN |
Additional Information
| Remanufactured Part | N |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Harmonized Tariff Code (Schedule B) | 8708998130 |
| Warranty Distance UOM | MI |
| Warranty Time UOM | MO |
| Canadian Harmonizing Tariff Code | 8708999919 |
| UPC | 00884548228986 |
Part Interchanges
Fits Vehicles
- Cadillac Seville (1991-1993)
- Cadillac Commercial Chassis (1991-1993)
- Cadillac 60 Special (1993)
- Cadillac Fleetwood (1991-1992)
- Cadillac Eldorado (1991-1993)
- Cadillac DeVille (1991-1995)
- Cadillac Allante (1991-1992)
A-1 Cardone Ind.® is a leading manufacturer and distributor of automotive parts and accessories, including master cylinders, clutches, calipers, and other braking system components. Its comprehensive range of products is made using the highest quality materials and the most advanced technology to ensure reliable performance, safety, and reliability. The company traces back its roots more than 35 years ago when Michael Cardone, Sr. remanufactures his first product: the windshield wiper motor. From then on, the name A-1 Cardone has been a go-to brand of automotive enthusiasts and fleet owners when it comes to new and remanufactured products that offer not just reliability but also long-lasting service.
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
