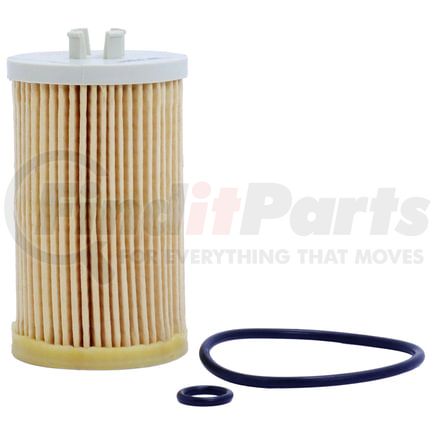

FRAM TG10246 - Cartridge Oil Filter
$1549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
FRAM part description
Product Description
FRAM, TG10246, Oil Filter
Features & Benefits
- Proven protection for up to 15,000 miles (24,000 kilometers)
Cartridge Oil Filter
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.134 IN |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Premium |
| Grade Type | Premium |
| Housing Color | NA |
| Inside Diameter Bottom | 1.063 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 2.461 IN |
| O-ring Outside Diameter | 2.600 IN |
| O-ring Thickness | 0.138 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.264 in |
| Outer Diameter Top | 2.264 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.365 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Country of Origin (Primary) | AR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100560186 |
| UNSPSC | 15121501 |
Part Interchanges
- Champ P981
- Bosch 7260WS
- Casite Filters CF643
- Hastings LF643
- Promotive PH5839
- Group 7 V5839
- ACDelco PF2257G
- Purolator L15839
- Wix 57674
- Baldwin P7489
- LUBER-FINER P981
- Carquest 84674
- Service Champ CF5839
- Mann-Filter HU612/2X
- Certified CCH10246
- General Motors 55594651
- Warner WP981
- Opel 5650359
- Pronto PO-5839
- MicroGard MGL10246
- MotoMaster MCH10246
- Valvoline VO-98
- STP S10246
- Parts Master 67674
- MAHLE OX254D4ECO
- NAPA 7674
- FVP G7674
- Hastings LF643F
- Mann-Filter ML1053
- General Motors 93185674
- MAHLE OX401D
- STP S10246ML
- STP S10246XL
- Bosch 72260WS
- Carquest Premium Filters 84674
- K&N HP_7027
- Mighty Distributing System M981
- Pennzoil PZ171
- ACDelco PF101G
- Quaker State QS171
- Mahle OX254D4ECO
- Factory Motor Parts G7674
- General Motors 55576499
- Hengst E614HD256
- Champion 55674T
- STP Filters S10246
- Mobil 1 M1C-257
- Performax PO-171
- NAPA Gold Filters 7674
- NAPA ProSelect Filters 27674
- Defense Filters DL10246
- Premium Guard PG5839
- Champion Filters 55674T
- ECOGARD X5839
- Prime Guard Filters - Archived POF5839
- NAPA Platinum Filters 7674
- Warner Filters WP981
- Purolator BOSS PBL15839
- PureZone 8-57674
- Purolator TECH TL15839
- PurolatorONE PL15839
- FRAM Tough Guard TG10246
- FRAM Ultra Synthetic XG10246
- FRAM Core COR10246ACC
- FRAM Force FF10246
- FRAM Titanium FS10246
- FRAM Drive FD10246
- FRAM Pro FP10246
- FRAM Synthetic Endurance FE10246
Fits Vehicles
- Pontiac G3 Wave (2009)
- Suzuki Swift+ (2009)
- Pontiac G3 (2009-2010)
- Chevrolet Equinox (2018-2019)
- GMC Terrain (2018-2019)
- GMC Canyon (2017-2022)
- Chevrolet Malibu (2016-2019)
- Chevrolet Colorado (2017-2022)
- Buick Cascada (2016-2019)
- Chevrolet Cruze Limited (2016)
- Chevrolet Trax (2013-2021)
- Buick Encore (2013-2021)
- Chevrolet Sonic (2012-2020)
- Chevrolet Cruze (2011-2015, 2017-2019)
- Chevrolet Aveo (2009-2011)
- Chevrolet Aveo5 (2009-2011)
- Saturn Astra (2008-2009)
