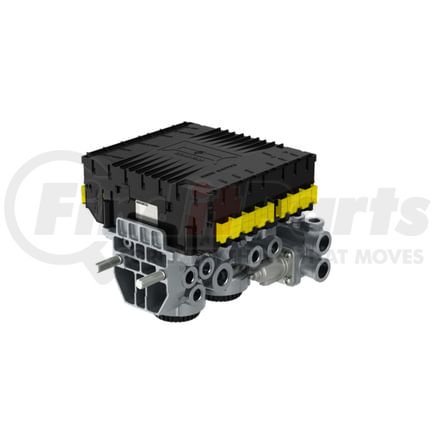

WABCO 4801020640 - Electronic Brake Control Module - EBS Trailer Modulator, 24V
$3,32949
3 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
WABCO part description
EBS-Trailer Modulator, 24V
Product Attributes
| Max. operating pressure | 8.5 bar |
| Weight | 13.74 |
| Mounting | 2x M12 |
| Temperature Range | -40°C to +65°C |
| System | 4S/3M |
| Protection class | IP 6K9K |
| Calculated Volume (dm³) | 12.46 |
| Port Thread 42 | M16 x 1.5 JED-152 |
| Port thread 4 | M16 x 1.5 JED - 152 |
| Size | 224 x 281 x 198 |
| Port Thread 5 | M16 x 1.5 JED-152 |
| Port thread 11 | M22 x 1.5 JED - 152 / M16 x 1.5 JED - 152 |
| Port thread 1 | M22 x 1.5 JED-152 / M16 x 1.5 JED-152 |
| Voltage | 24 V |
| Distance between bolts | 70 mm |
| Version | TEBS E with PEM |
| Port thread 23 | M16 x 1.5 JED - 152 |
| Port thread 21 | M16 x 1.5 JED - 152 |
| Port thread 22 | M16 x 1.5 JED - 152 |
| Port thread 24 | M16 x 1.5 JED - 152 |
| Type | Premium |
| Port thread 3 | 2 Integrated Silencer |
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
