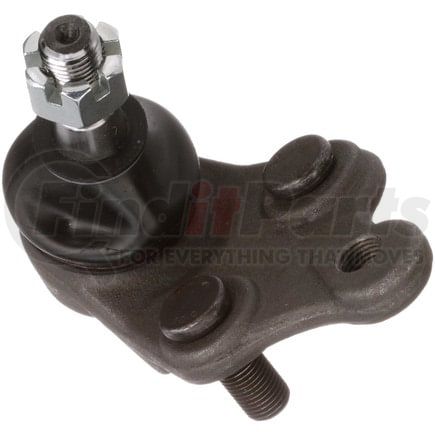

DELPHI TC637 Part Description
DELPHI TC637 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.732 IN |
| Maximum Outside Diameter | 44.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 70 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.181 IN |
| Mounting Bolt Length | 30.00 MM |
| Washers Included | No |
| Height | 3.831 IN |
| Height | 97.30 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.787 IN |
| Stud Thread Length | 20 MM |
| Wrench Size | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 35.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolt Head Diameter | 0.748 IN |
| Mounting Bolt Head Diameter | 19.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 0.787 IN |
| Mounting Bolt Thread Length | 20.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.717 IN |
| Stud Tapered End 2 Diameter | 18.2 MM |
| Stud Tapered End 1 Diameter | 0.61 IN |
| Stud Tapered End 1 Diameter | 15.5 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 121.00 MM |
| Length | 4.760 IN |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604273999 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC637 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4136 |
| MOOG Chassis Products | K9525 |
| Mevotech | MK9525, MS8070 |
| Toyota | 43340-19015 |
| MAS Industries | B9525 |
| Import Direct | BJ07016 |
| TRW | JBJ223 |
| N/A | GK9525, 43340-19016, B9525PR |
DELPHI TC637 Fits Vehicles
- Toyota Corolla (1988-1993)
- Geo Prizm (1989-1992)
