Delphi TC595 - Ball Joint
$1949
MSRP: $28.18
Save: $8.69
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description

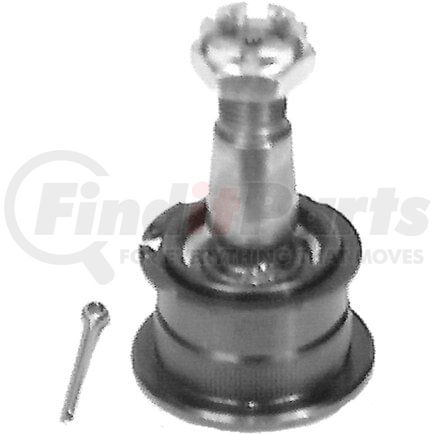

Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 2.205 IN |
| Maximum Outside Diameter | 56.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 56 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.287 IN |
| Height | 83.50 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.728 IN |
| Stud Thread Length | 18.5 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.795 IN |
| Stud Tapered End 2 Diameter | 20.2 MM |
| 9213 | 0.717 IN |
| Stud Tapered End 1 Diameter | 18.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 56.00 MM |
| Length | 2.200 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604274019 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Mitsubishi Mighty Max (1983-1986)
- Mitsubishi Montero (1983-1989)
- Plymouth Arrow Pickup (1981-1982)
- Dodge Raider (1987-1989)
- Dodge Power Ram 50 (1983-1986)
- Dodge D50 (1981)
