DELPHI part description

Product Description

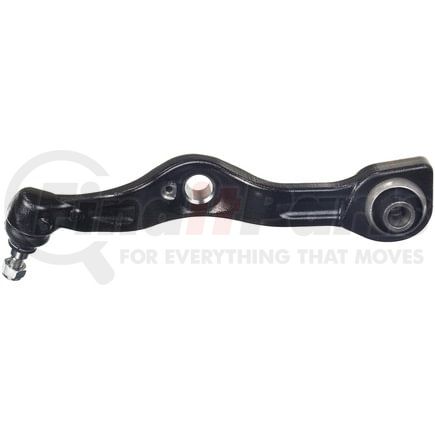

Control Arm and Ball Joint Assembly

Product Attributes

Item Grade Standard Replacement
Position(s) Front Left Lower Rearward
Grease Fitting Included No
Ball Joint Stud Type Threaded
Control Arm Construction Casting/Forged
Control Arm Material Steel
Mounting Hole Quantity 1
Adjustable No
Greasable No
Control Arm Maximum Width 3.937 IN
Control Arm Maximum Width 100.00 MM
Control Arm Color Black
Ball Joint Thread Diameter 14.00 MM
Ball Joint Stud Length 72.00 MM
Mounting Hole Diameter 14.20 MM
Bushing Material Rubber
Thread Direction Clockwise (Right)
Bushing Color Black
Finish Painted
Pre-Greased Yes
Bushings Included Yes
Dust Boot Included Yes
Ball Joint Included Yes
Mounting Hardware Included Yes
Grade Type Premium
Boot Material Chloroprene Rubber (CR)
Locking Nut Included Yes
Thread Diameter 14.00 MM
Boot Color Black
Steering Type Power
Bearing Material Plastic
Dust Boot Material Chloroprene Rubber (CR)
Ball Joint Thread Diameter 0.551 IN
Ball Joint Stud Length 2.835 IN
Thread Diameter 0.551 IN
Mounting Hole Diameter 0.559 IN

Additional Information

Harmonized Tariff Code (HTS) 8708806590
Warranty Special Limited Lifetime
Warranty Special UOM LF
Harmonized Tariff Code (Schedule B) 8708807000
Country of Origin (Primary) TR
UPC 00689604273364
VMRS Code 016001001
UNSPSC 25172013

Part Interchanges

Fits Vehicles

  • Mercedes-Benz S400 (2010-2013)
  • Mercedes-Benz CL65 AMG (2008-2014)
  • Mercedes-Benz S63 AMG (2008-2013)
  • Mercedes-Benz CL63 AMG (2008-2014)
  • Mercedes-Benz CL550 (2007-2008)
  • Mercedes-Benz CL600 (2007-2014)
  • Mercedes-Benz S65 AMG (2007-2013)
  • Mercedes-Benz S600 (2007-2013)
  • Mercedes-Benz S550 (2007-2013)
