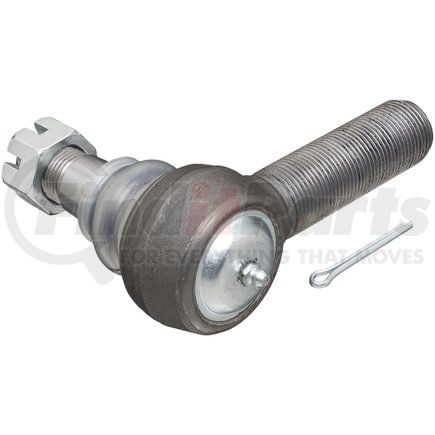

Delphi TA2546 - Tie Rod End
$5249
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Dust Boot Included | Yes |
| Width | 62 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 1.117 IN |
| End 2 Thread Diameter | 28.38 MM |
| Height | 126.50 MM |
| Housing Material | Steel |
| 36 | 1.125 IN |
| Tube Diameter | 28.38 MM |
| Adjustable | No |
| Weight | 3.04 lb |
| Cone Outside Diameter | 28.10 MM |
| Bearing Material | Steel |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| Length Stud Center to End | 4.921 IN |
| Length Stud Center to End | 125.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 12 |
| End 1 Threads Per Inch | 14 |
| End 1 Thread Diameter | 0.875 IN |
| End 1 Thread Diameter | 22.23 MM |
| Shank Length | 28.10 MM |
| Stud Length | 28.10 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 1.106 IN |
| Stud Length | 1.106 IN |
| 662 | 1.106 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604274996 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- International 7100 (1990-1995)
- International 4900 (1990-2002)
- International 4800 (1990-2002)
- International 4700 (1990-2005)
- International 4600 (1990-1994)
- International 4200 (2002-2007)
- International 3700 (1990-1994)
- International 3800 (1987, 1990-1994)
- International 4300 (2002-2012)
- Ford C900 (1981)
- Ford CFT8000 (1988)
- Ford CT8000 (1981-1988)
- Ford CF6000 (1986)
- Ford CF7000 (1986)
- Ford LN700 (1980-1986)
- Ford LN7000 (1981-1986)
- Ford CF8000 (1987-1988)
- Ford C8000 (1980-1988)
- Ford C800 (1980-1987)
- Ford C7000 (1980-1986)
- Ford C700 (1980-1986)
- Ford C600 (1980-1986)
