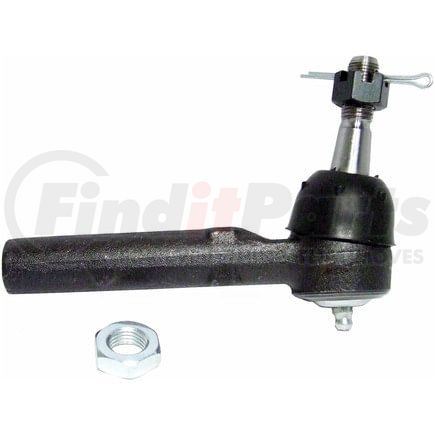

Name: Delphi TA2305 Tie Rod End
SKU: ta2305
Price: 39.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Outer
Item Grade	Standard Replacement
Color	Gray
End 2 Gender	Female
Pre-Greased	Yes
Dust Boot Included	Yes
Width	39.5 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	14.00 MM
End 2 Thread Diameter	0.551 IN
Height	104.00 MM
Housing Material	Steel
Tube Diameter	22.00 MM
36	0.866 IN
Adjustable	No
Weight	1.36 lb
Cone Outside Diameter	16.00 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length Stud Center to End	4.961 IN
Length Stud Center to End	126.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.472 IN
End 1 Thread Diameter	12.00 MM
Shank Length	16.00 MM
Stud Length	16.00 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.630 IN
Stud Length	0.630 IN
662	0.630 IN

Additional Information

Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
UPC	00689604275917
VMRS Code	015004045
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Chevrolet Impala Limited (2014-2016)
Chevrolet Monte Carlo (2004-2007)
Chevrolet Impala (2004-2013)
Pontiac Trans Sport (1997-1999)
Pontiac Montana (1999-2005)
Pontiac Grand Prix (1997-2003)
Oldsmobile Silhouette (1997-2004)
Chevrolet Venture (1997-2005)
