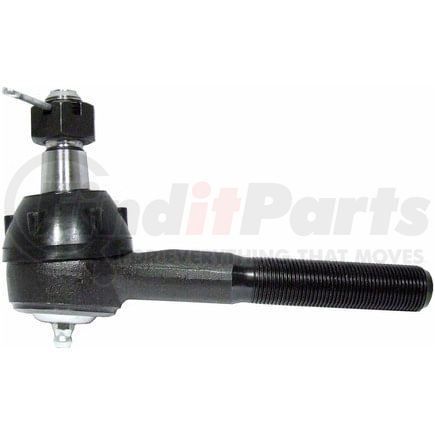

Name: Delphi TA2271 Tie Rod End
SKU: ta2271
Price: 28.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Right, Right Inner, Right Outer. For the position specific to your vehicle, refer to the Applications.
Item Grade	Standard Replacement
Color	Gray
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Dust Boot Included	Yes
Width	43 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.687 IN
End 2 Thread Diameter	17.46 MM
Height	87.80 MM
Housing Material	Steel
36	0.688 IN
Tube Diameter	17.46 MM
Adjustable	No
Weight	1.16 lb
Cone Outside Diameter	17.90 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
Length Stud Center to End	5.236 IN
Length Stud Center to End	133.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 2 Threads Per Inch	18
End 1 Threads Per Inch	18
End 1 Thread Diameter	0.563 IN
End 1 Thread Diameter	14.29 MM
Shank Length	17.90 MM
Stud Length	17.90 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.705 IN
Stud Length	0.705 IN
662	0.705 IN

Additional Information

Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
UPC	00689604276037
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Plymouth Trailduster (1979-1981)
Plymouth PB300 (1979-1980)
Plymouth PB200 (1979-1980)
Plymouth PB350 (1981-1983)
Plymouth PB250 (1981-1983)
Plymouth PB100 (1979-1980)
Plymouth PB150 (1981-1983)
Dodge Ramcharger (1979-1993)
Dodge Ram 3500 Van (1999-2003)
Dodge Ram 2500 Van (1999-2003)
Dodge Ram 1500 Van (1999-2003)
Dodge D400 (1979-1981)
Dodge D350 (1981-1993)
Dodge D300 (1979-1980)
Dodge D250 (1981-1993)
Dodge D200 (1979-1980)
Dodge D150 (1979-1993)
Dodge D100 (1979-1980, 1984-1989)
Dodge CB300 (1979-1980)
Dodge B3500 (1995-1998)
Dodge B350 (1981-1994)
Dodge B300 (1979-1980)
Dodge B2500 (1995-1998)
Dodge B200 (1979-1980)
Dodge B250 (1981-1994)
Dodge B1500 (1995-1998)
Dodge B150 (1981-1994)
Dodge B100 (1979-1980)
