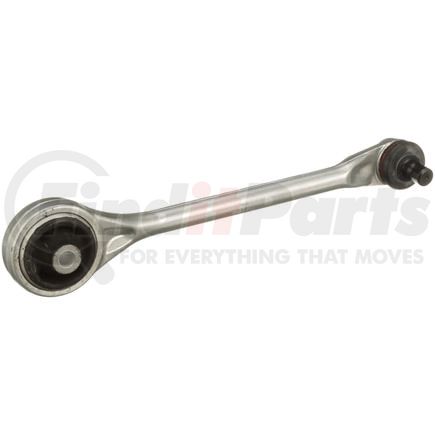

Delphi TC863 - Control Arm and Ball Joint Assembly
$2749
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper Forward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Grooved |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 2.165 IN |
| Control Arm Maximum Width | 55.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 16.0 MM |
| Ball Joint Stud Length | 45.00 MM |
| Control Arm Maximum Length | 14.764 IN |
| Control Arm Maximum Length | 375.00 MM |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Stud Length | 1.772 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604260418 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
Part Interchanges
- Beck/Arnley 101-5008
- Beck/Arnley 102-5008
- MOOG Chassis Products RK620716
- MOOG Chassis Products RK90700
- Mcquay-Norris FA4044
- Mevotech CMS101049
- Mevotech MK90700
- Deeza AD-H244
- Audi 4D0 407 505 F
- Audi 4D0 407 505 H
- Audi 4D0 407 505B
- Audi 4D0 407 505D
- MAS Industries CB30830
- TRW JTC996
- CB12060PR
- 520-720
- CB12060
Fits Vehicles
- Audi S8 (2001-2003)
- Audi A8 (1997-1999)
- Audi A8 Quattro (1997-2003)
