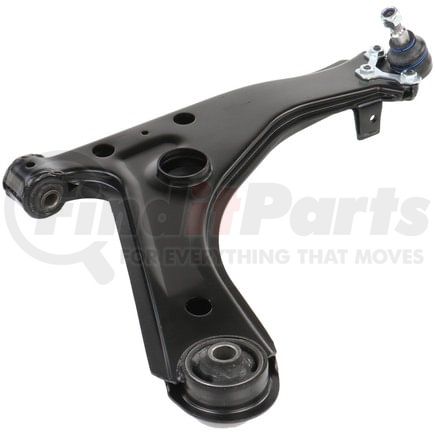

Delphi TC690 - Control Arm and Ball Joint Assembly
$6849
MSRP: $79.32
Save: $10.83
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 3.760 IN |
| Control Arm Maximum Width | 95.50 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 0.965 IN |
| Ball Joint Stud Length | 24.50 MM |
| Control Arm Maximum Length | 14.508 IN |
| Control Arm Maximum Length | 368.50 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604259955 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
- Beck/Arnley 101-6628
- Beck/Arnley 102-6628
- MOOG Chassis Products K620138
- MOOG Chassis Products RK620138
- Mevotech CMS70103
- Mevotech MS70103
- Volkswagen 1H0 407 152
- Seat 1H0 407 152
- MAS Industries CA43144
- MAS Industries CA43144PR
- MAS Industries CA43175
- MAS Industries CA43175PR
- TRW JTC948
- Dorman 52-2034
- Dorman 521-330
- GS70103
Fits Vehicles
- Volkswagen Golf (1995-1999)
- Volkswagen Jetta (1994-1999)
- Volkswagen Corrado (1992-1994)
