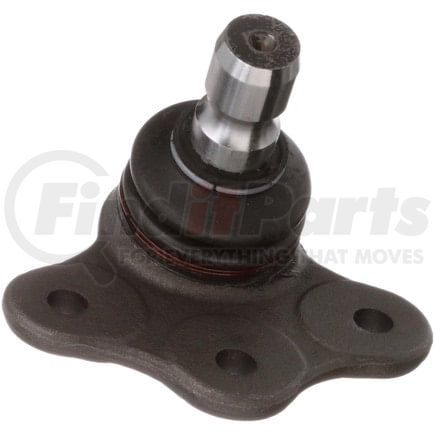

Delphi TC687 - Ball Joint
$3399
MSRP: $57.14
Save: $23.15
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front |
| Material | Steel |
| Maximum Outside Diameter | 3.189 IN |
| Maximum Outside Diameter | 81.00 MM |
| Color | Black |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 81 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| 3068 | 0.984 IN |
| Mounting Bolt Length | 25.00 MM |
| Washers Included | Yes |
| Height | 3.583 IN |
| Height | 91.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 839 | 13mm |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 76.20 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.315 IN |
| Mounting Bolt Shank Diameter | 8.00 MM |
| 9203 | 0.591 IN |
| Mounting Bolt Head Diameter | 15.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 0.984 IN |
| Mounting Bolt Thread Length | 25.00 MM |
| Mounting Bolt Thread Diameter | 8.00 MM |
| Mount Plate Included | No |
| Length | 81.00 MM |
| Length | 3.190 IN |
| Mounting Bolt Thread Diameter | 0.310 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604271070 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Saturn Astra (2008-2009)
- Cadillac Catera (1997-2001)
