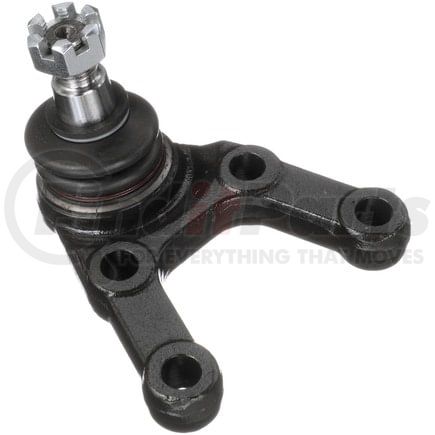

Delphi TC597 - Ball Joint
$2999
MSRP: $40.23
Save: $10.24
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
Item Grade | Standard Replacement |
Position(s) | Front Lower |
Material | Steel |
Maximum Outside Diameter | 4.587 IN |
Maximum Outside Diameter | 116.50 MM |
Color | Black |
Stud Thread Diameter | 0.63 IN |
Stud Thread Diameter | 16 MM |
Castle Nut Included | Yes |
Grease Fitting Included | No |
Suspension Grade Type | Standard |
Bushings Included | No |
Dust Boot Included | Yes |
Ball Joint Assembly | Yes |
Width | 116.5 MM |
Cotter Pin Included | No |
Cotter Pin Hole | Yes |
Mounting Hardware Included | Yes |
3068 | 1.575 IN |
Mounting Bolt Length | 40.00 MM |
Washers Included | Yes |
Height | 4.587 IN |
Height | 116.50 MM |
Nuts Included | Yes |
Mounting Hole Quantity | 4 |
Adjustable | No |
Greasable | No |
4966 | 0.689 IN |
Stud Thread Length | 17.5 MM |
839 | 19mm |
Stud Type | Threaded |
Mounting Type | Bolt-In |
Distance Between Mounting Holes | 90.00 MM |
Dust Boot Material | Rubber |
9202 | 0.472 IN |
Mounting Bolt Shank Diameter | 12.00 MM |
9203 | 0.866 IN |
Mounting Bolt Head Diameter | 22.00 MM |
Mounting Bolts Included | Yes |
Mounting Bolt Thread Pitch | 1.25 MM |
9207 | 1.181 IN |
Mounting Bolt Thread Length | 30.00 MM |
Mounting Bolt Thread Diameter | 12.00 MM |
Mount Plate Included | No |
Length | 125.00 MM |
Length | 4.920 IN |
Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
Harmonized Tariff Code (Schedule B) | 8708807000 |
Harmonized Tariff Code (HTS) | 8708806590 |
Warranty Special | Limited Lifetime |
Warranty Special UOM | LF |
Country of Origin (Primary) | TR |
UPC | 00689604259863 |
VMRS Code | 016001015 |
UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Dodge D50 (1982)
- Mitsubishi Montero (1983-1991)
- Mitsubishi Mighty Max (1983-1994)
- Dodge Ram 50 (1987-1993)
- Dodge Raider (1987-1989)
- Dodge Power Ram 50 (1983-1986)
