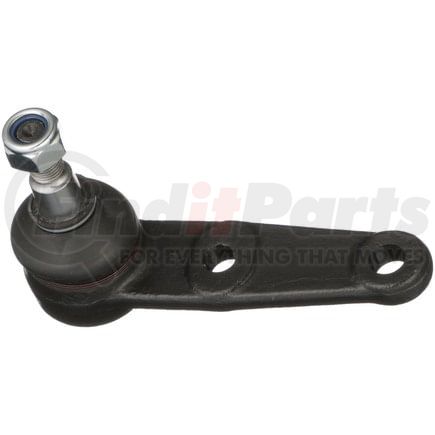

Delphi TC582 - Ball Joint
$2349
MSRP: $27.91
Save: $4.42
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.764 IN |
| Maximum Outside Diameter | 44.80 MM |
| Color | Black |
| Stud Thread Diameter | 0.472 IN |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 44.8 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.366 IN |
| Height | 85.50 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.717 IN |
| Stud Thread Length | 18.2 MM |
| 839 | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 58.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.677 IN |
| Stud Tapered End 2 Diameter | 17.2 MM |
| 9213 | 0.591 IN |
| Stud Tapered End 1 Diameter | 15 MM |
| Stud Thread Pitch | 1.25 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604259818 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
- Beck/Arnley 101-4112
- Raybestos Chassis 505-1171
- MOOG Chassis Products K9453
- MOOG Chassis Products K9635
- Mcquay-Norris FA2055
- Mevotech MK9453
- Mevotech MK9635
- Mevotech MS20119
- Mevotech MS20120
- Hyundai 54530-24000
- Hyundai 54530-24A00
- Hyundai 54530-28000
- Hyundai 54530-28A00
- MAS Industries B9453
- MAS Industries B9635
- TRW JBJ374
- Import Direct BJ07064
- 5453028020
Fits Vehicles
- Mitsubishi Precis (1990-1994)
- Hyundai Excel (1990-1994)
- Hyundai Elantra (1992-1995)
- Hyundai Scoupe (1991-1995)
