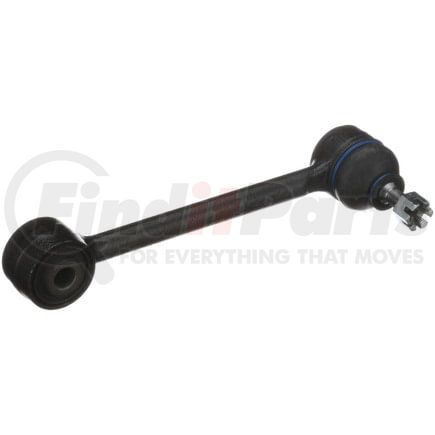

(888) 312-8812 Login SignupDELPHI TC3236 Control Arm and Ball Joint Assembly
Tap to view 20 more
MSRP: $64.62
$4999
Save $14.63
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC3236 Part Description
DELPHI TC3236 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 1.654 IN |
| Control Arm Maximum Width | 42.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.394 IN |
| Ball Joint Thread Diameter | 10.00 MM |
| Ball Joint Stud Length | 0.823 IN |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Pre-Greased | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Ball Joint Stud Length | 20.90 MM |
| Thread Diameter | 10.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.394 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604270370 |
| VMRS Code | 016008142 |
| UNSPSC | 25172013 |
DELPHI TC3236 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-7274, 102-8031 |
| MOOG Chassis Products | CK622764, RK622764, RK622793 |
| Kia | 55250-3Q010, 55250-3R000 |
| Hyundai | 55250-3Q010 |
| MAS Industries | LA63700, LA63700PR |
| Dorman | 522-822 |
| N/A | CMS901070 |
DELPHI TC3236 Fits Vehicles
- Hyundai Azera (2012-2016)
- Kia Optima (2011-2016)
- Hyundai Sonata (2011-2015)
