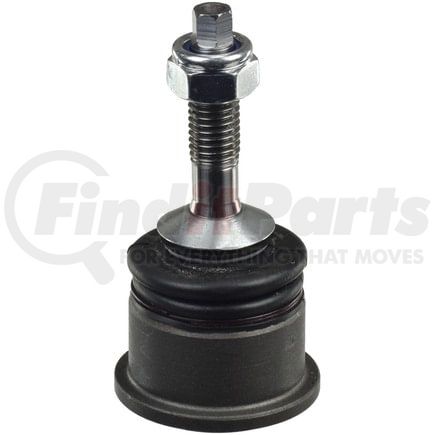

(888) 312-8812 Login SignupDELPHI TC2904 Ball Joint
Tap to view 2 more
MSRP: $42.74
$3449
Save $8.25
Limited availability at this price!
In Stock
Get it by Friday, Dec 19
DELPHI TC2904 Part Description
DELPHI TC2904 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.047 IN |
| Maximum Outside Diameter | 52.00 MM |
| Color | Black |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 58 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.988 IN |
| Mounting Bolt Length | 50.50 MM |
| Washers Included | No |
| Height | 3.661 IN |
| Height | 93.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.748 IN |
| Stud Thread Length | 19 MM |
| Wrench Size | 16mm |
| Stud Type | Threaded |
| Distance Between Mounting Holes | 73.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolt Head Diameter | 0.953 IN |
| Mounting Bolt Head Diameter | 24.20 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 1.063 IN |
| Mounting Bolt Thread Length | 27.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.752 IN |
| Stud Tapered End 2 Diameter | 19.1 MM |
| Stud Tapered End 1 Diameter | 0.657 IN |
| Stud Tapered End 1 Diameter | 16.7 MM |
| Stud Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604268674 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC2904 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5767, 101-7013, 101-7137 |
| MOOG Chassis Products | K500084 |
| Mevotech | MS40501, MS40502 |
| Jaguar | XR852807 |
| MAS Industries | BJ24075, BJ86075 |
| TRW | JBJ1046, JBJ967 |
| N/A | XR852808, XR841215 |
DELPHI TC2904 Fits Vehicles
- Lincoln LS (2000-2002)
- Ford Thunderbird (2002-2003)
- Jaguar S-Type (2000-2002)
