DELPHI part description

Product Description

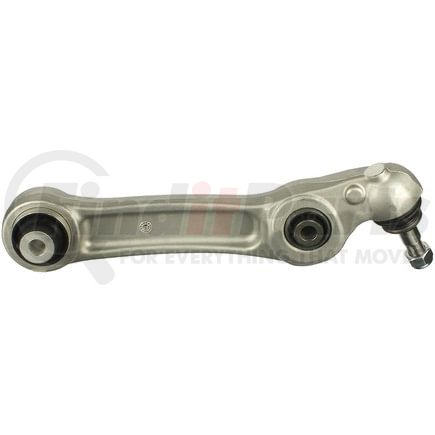

Control Arm and Ball Joint Assembly

Product Attributes

Item Grade Standard Replacement
Position(s) Front Right Lower Rearward, Front Right Upper Rearward. For the position specific to your vehicle, refer to the Applications.
Pre-Greased Yes
Grease Fitting Included No
Bushings Included Yes
Ball Joint Stud Type Threaded
Control Arm Construction Casting/Forged
Control Arm Material Aluminum
Mounting Hardware Included Yes
Mounting Hole Quantity 1
Adjustable No
Greasable No
Control Arm Maximum Width 3.543 IN
Control Arm Maximum Width 90.00 MM
Control Arm Color Gray
Ball Joint Thread Diameter 16.00 MM
Ball Joint Stud Length 85.00 MM
Control Arm Maximum Length 15.354 IN
Control Arm Maximum Length 390.00 MM
Mounting Hole Diameter 15.20 MM
Bushing Material Rubber
Thread Direction Clockwise (Right)
Bushing Color Black
Finish Uncoated
Dust Boot Included Yes
Ball Joint Included Yes
Grade Type Premium
Boot Material Chloroprene Rubber (CR)
Locking Nut Included Yes
Thread Diameter 16.00 MM
Boot Color Black
Steering Type Power
Bearing Material Plastic
Dust Boot Material Chloroprene Rubber (CR)
Ball Joint Thread Diameter 0.630 IN
Ball Joint Stud Length 3.346 IN
Thread Diameter 0.630 IN
Mounting Hole Diameter 0.598 IN

Additional Information

Harmonized Tariff Code (HTS) 8708806590
Warranty Special Limited Lifetime
Warranty Special UOM LF
Harmonized Tariff Code (Schedule B) 8708807000
Country of Origin (Primary) TR
UPC 00689604258903
VMRS Code 016001001
UNSPSC 25172013

Part Interchanges

Fits Vehicles

  • BMW 535d (2014-2016)
  • BMW ActiveHybrid 5 (2012-2016)
  • BMW 650i Gran Coupe (2013-2019)
  • BMW 640i Gran Coupe (2013-2019)
  • BMW 640i (2012-2018)
  • BMW 650i (2012-2018)
  • BMW 528i (2011-2016)
  • BMW 535i (2011-2016)
  • BMW 550i (2011-2016)
