Delphi TC2738 - Control Arm and Ball Joint Assembly
$10649
MSRP: $228.97
Save: $122.48
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description

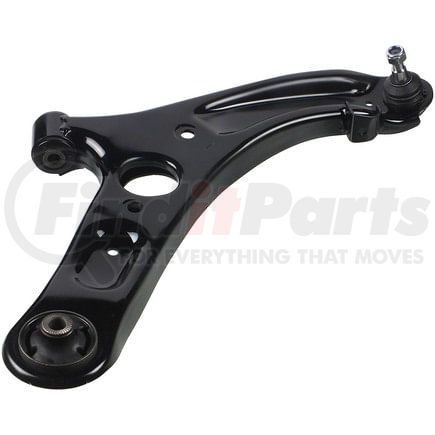

Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 3.366 IN |
| Control Arm Maximum Width | 85.50 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 0.807 IN |
| Ball Joint Stud Length | 20.50 MM |
| Control Arm Maximum Length | 17.366 IN |
| Control Arm Maximum Length | 441.10 MM |
| Mounting Hole Diameter | 0.323 IN |
| Mounting Hole Diameter | 8.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604258583 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
- Beck/Arnley 102-7583
- Beck/Arnley 102-7786
- Beck/Arnley 102-7806
- MOOG Chassis Products CK622646
- MOOG Chassis Products K622646
- MOOG Chassis Products RK622646
- Mevotech CMS861117
- Hyundai 54501-3X000
- Hyundai 54501-3Y000
- Hyundai 545012V000
- MAS Industries CB60304
- MAS Industries CB60304PR
- MAS Industries CB60424PR
- MOOG Chassis Products 102-7583
- MOOG Chassis Products 102-7786
- TRW JTC2743
- 54501-3X700
- 520-380
- CMS901105
- GS861117
- CB60424
- 522-824
Fits Vehicles
- Hyundai Elantra GT (2013-2017)
- Hyundai Elantra Coupe (2013-2014)
- Hyundai Veloster (2012-2017)
- Hyundai Elantra (2011-2017)
