DELPHI part description
Product Description

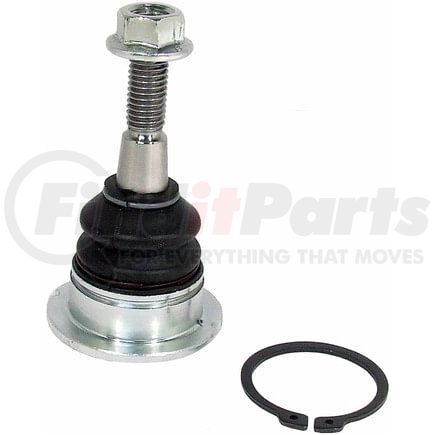

Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 1.902 IN |
| Maximum Outside Diameter | 48.30 MM |
| Color | Gray |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 52.3 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| 3068 | 1.181 IN |
| Mounting Bolt Length | 30.00 MM |
| Washers Included | No |
| Height | 3.831 IN |
| Height | 97.30 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.76 IN |
| Stud Thread Length | 19.3 MM |
| 839 | 8mm |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Distance Between Mounting Holes | 70.00 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.394 IN |
| Mounting Bolt Shank Diameter | 10.00 MM |
| 9203 | 0.630 IN |
| Mounting Bolt Head Diameter | 16.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.5 MM |
| 9207 | 0.787 IN |
| Mounting Bolt Thread Length | 20.00 MM |
| Mounting Bolt Thread Diameter | 10.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.815 IN |
| Stud Tapered End 2 Diameter | 20.7 MM |
| 9213 | 0.65 IN |
| Stud Tapered End 1 Diameter | 16.5 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 91.00 MM |
| Length | 3.580 IN |
| Mounting Bolt Thread Diameter | 0.390 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604257470 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Land Rover LR3 (2005-2009)
- Land Rover LR4 (2010-2016)
- Land Rover Range Rover Sport (2006-2013)
